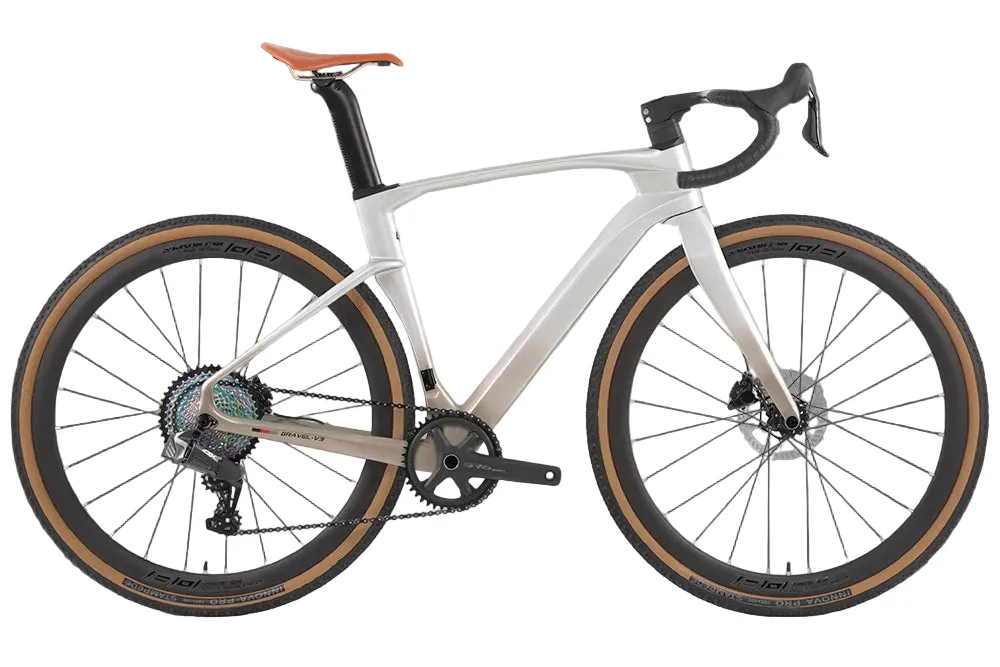

Gravel V3 - Wireless - Twitter Gravel Road Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 45 / 48 / 51 / 54 cm

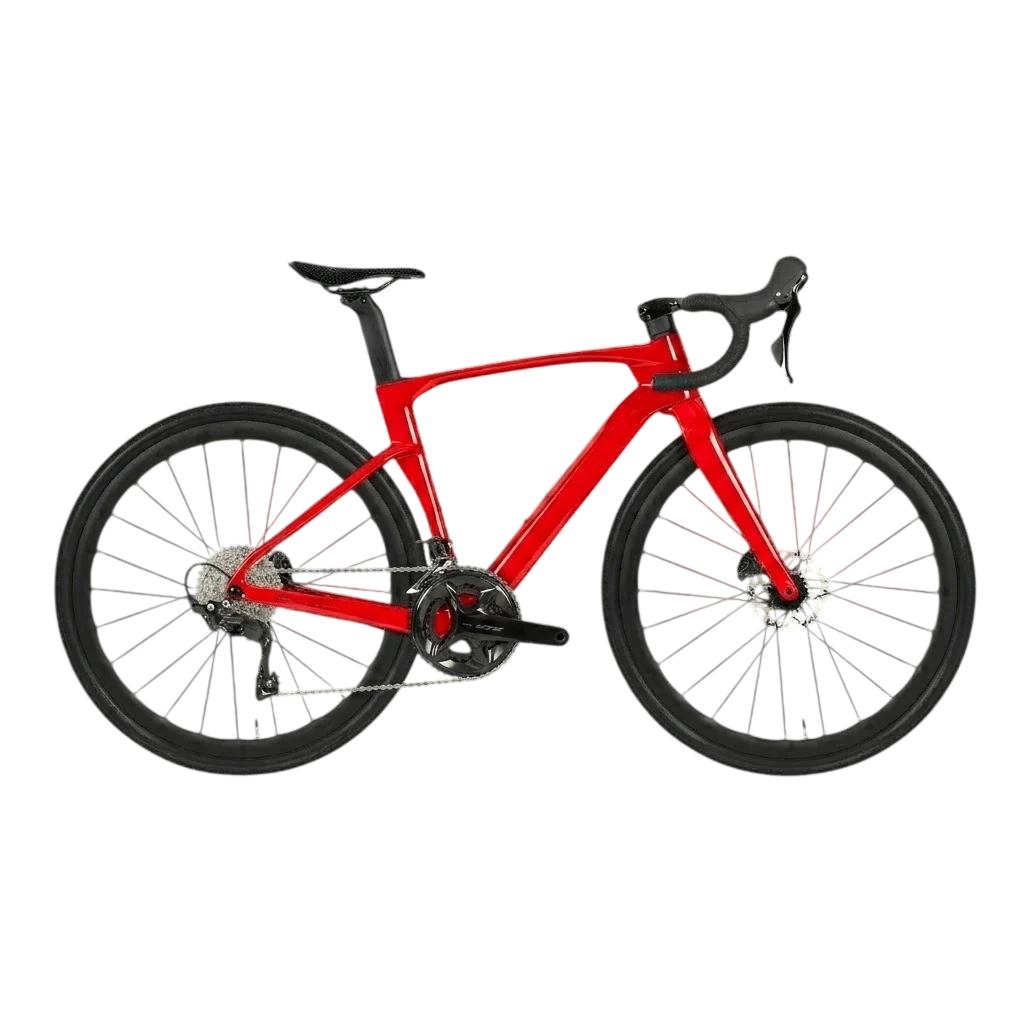

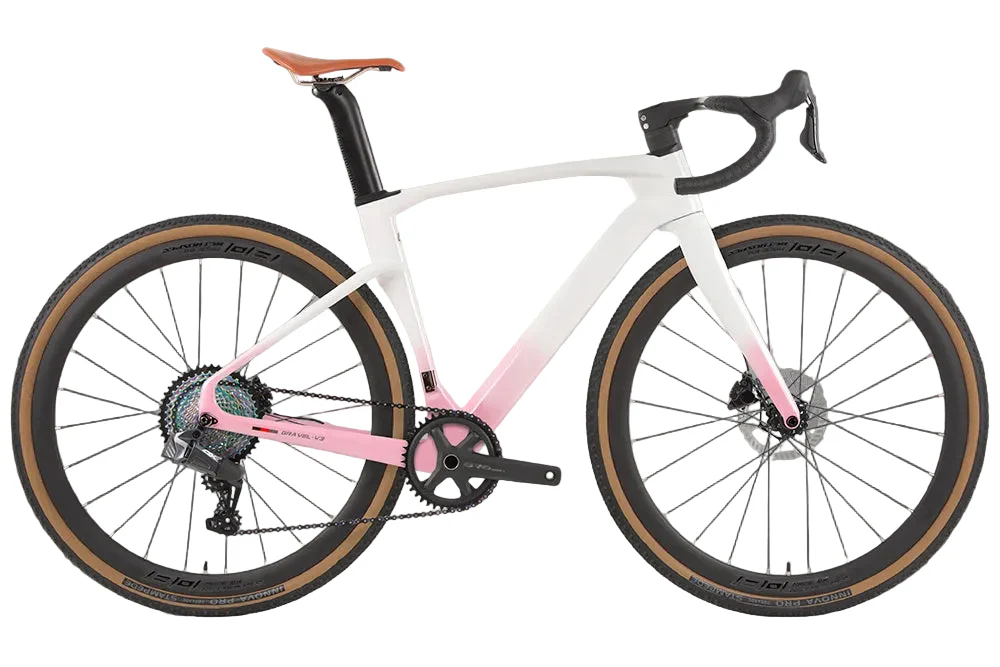

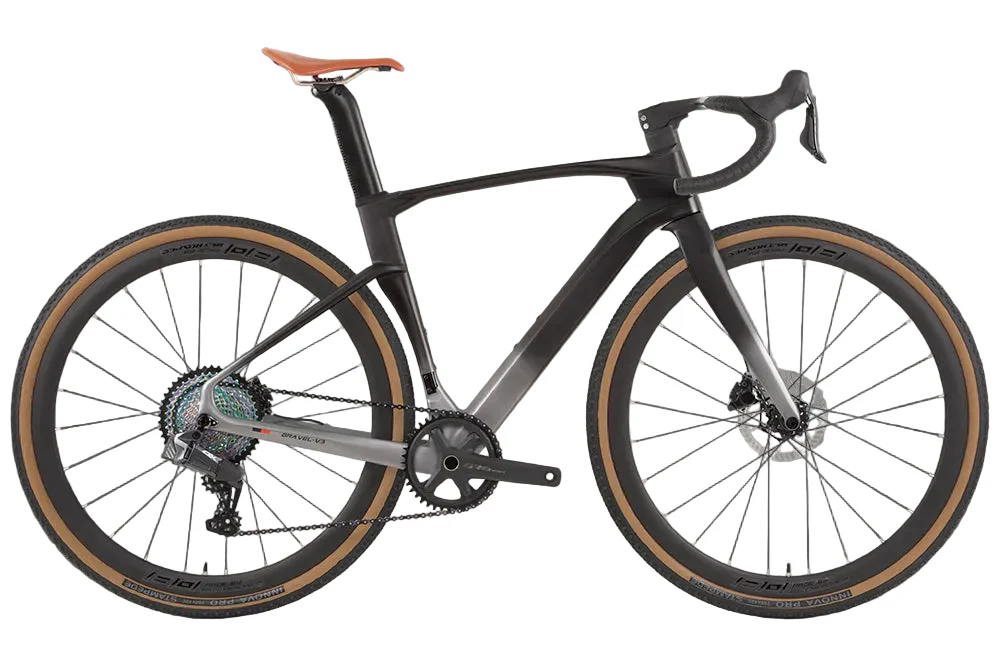

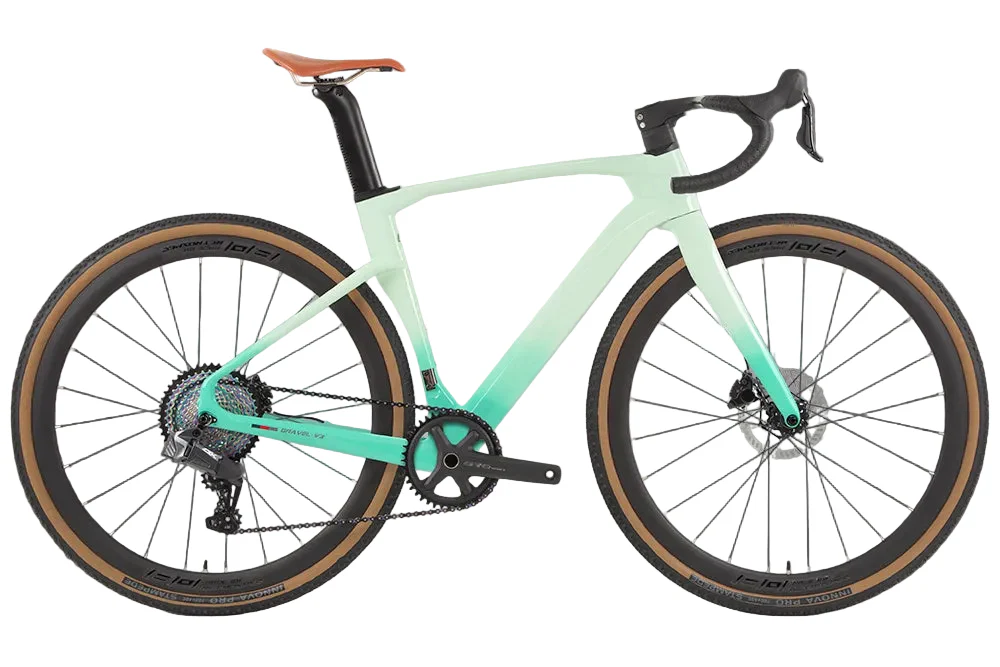

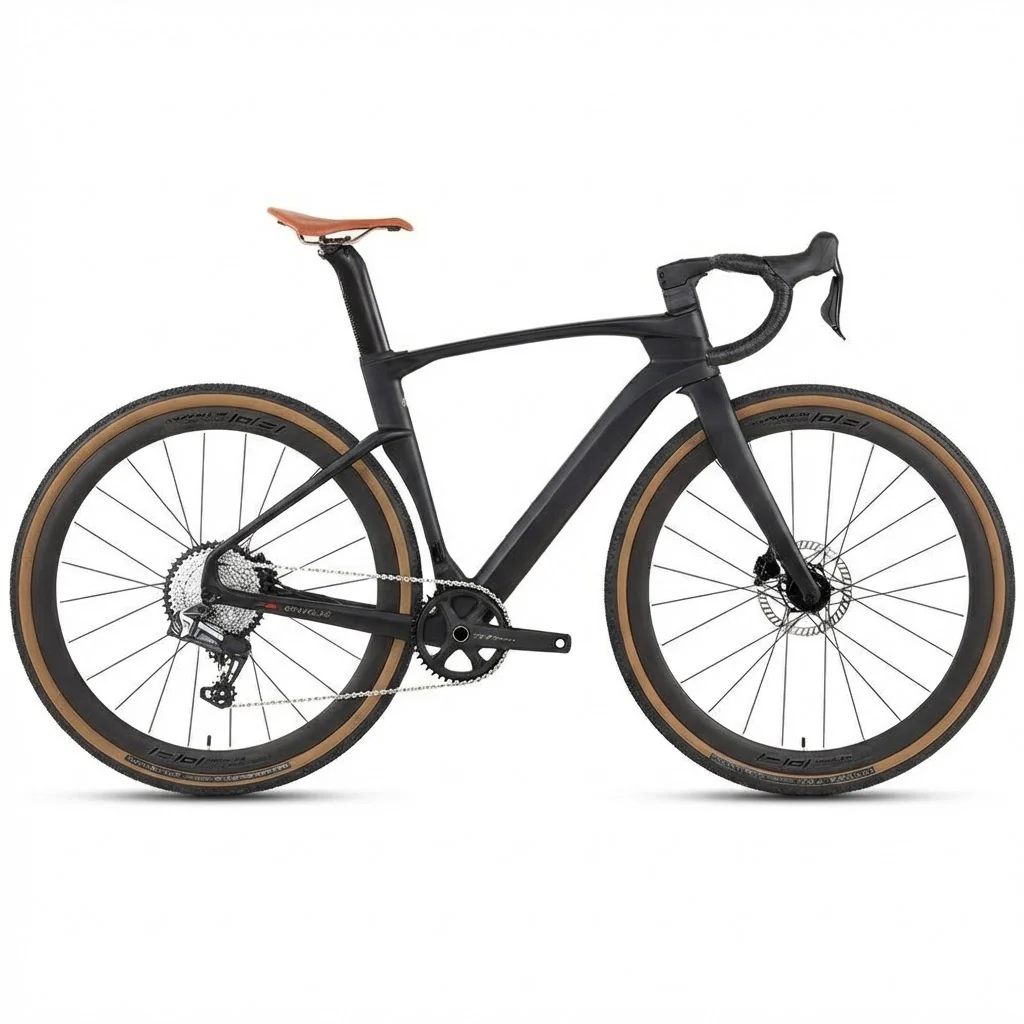

• Bike Colors: White Pink / Cyan Green / Silver Ti / Black Gray / Orange Red / Others / Full Holographic
• Net Weight: 9.9 kg

---

Frame & Structure

• Frame: Gravel V3 (Disc & Thru-Axle 12×142), High Modulus Carbon Fiber, XC Geometry, Full Internal Cable Routing
• Fork: Gravel V3 (Disc & Thru-Axle 12×100), High Modulus Carbon Fiber, 700C
• Seat Post: High Modulus Carbon Fiber, Aero-Racing Profile
• Handlebar Set: Integrated Carbon Fiber Handlebar & Stem (420×90 mm), Full Internal Cable Routing
• Clamps: Hidden Screw Fit to Frame
• Head Set: CNC Aluminum Alloy with Sealed Bearings (52×52 mm)
• Bottom Bracket: Threaded T47 (24 mm / 29 mm depending on drivetrain)
• Washer: Dedicated for Internal Cable Routing

---

Drivetrain Options

Variant 1 – WheelTop EDS TX 2×12 Wireless Hydraulic

• System: WheelTop EDS TX 2×12-Speed (Wireless & Hydraulic)
• Front Derailleur: WheelTop EDS TX Wireless 2-Speed
• Rear Derailleur: WheelTop EDS TX Wireless 12-Speed
• Crankset: SENICX PR6 Aluminum Alloy Hollow 34/50T
• Cassette: SUNSHINE 12-Speed (11–32T)
• Chain: SUMC 12-Speed
• Brakes: WheelTop Hydraulic Disc (160/160 mm)

---

Variant 2 – WheelTop GEX 1×13 Wireless Hydraulic

• System: WheelTop GEX 1×13-Speed (Wireless & Hydraulic)
• Front Derailleur: None

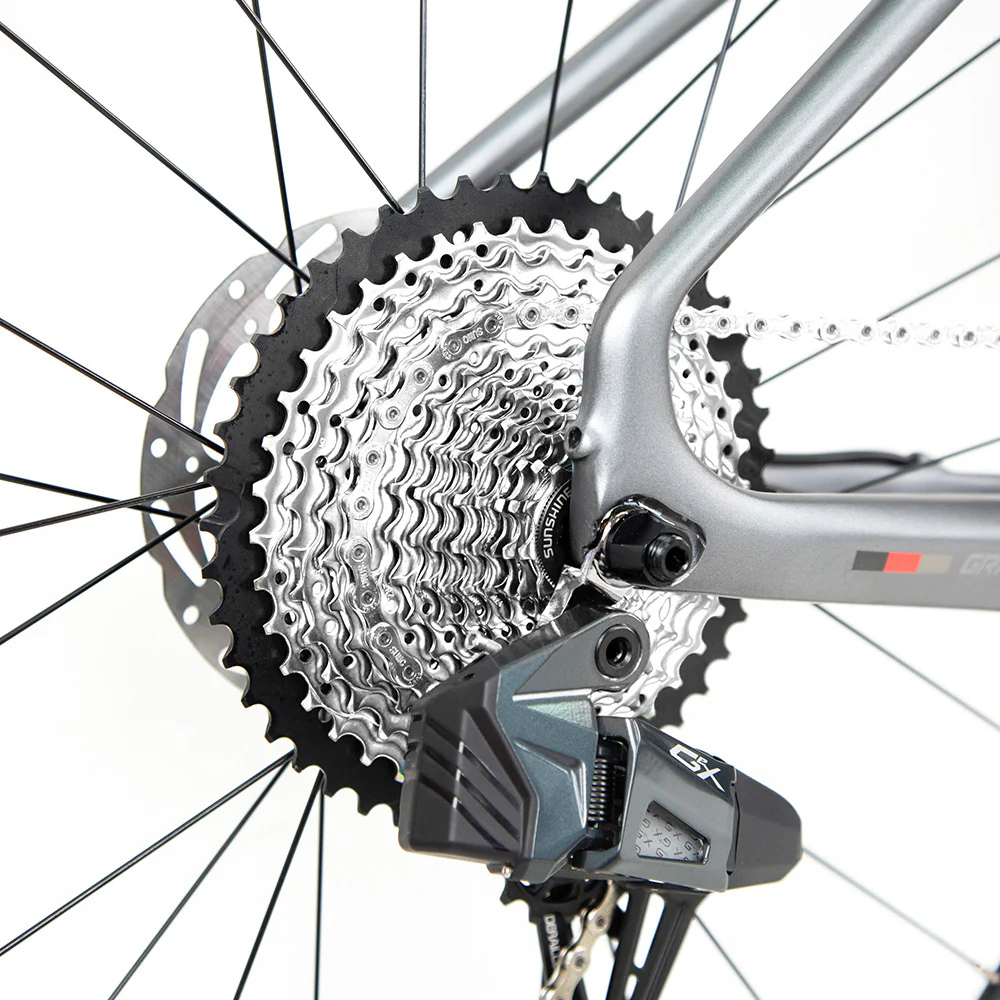

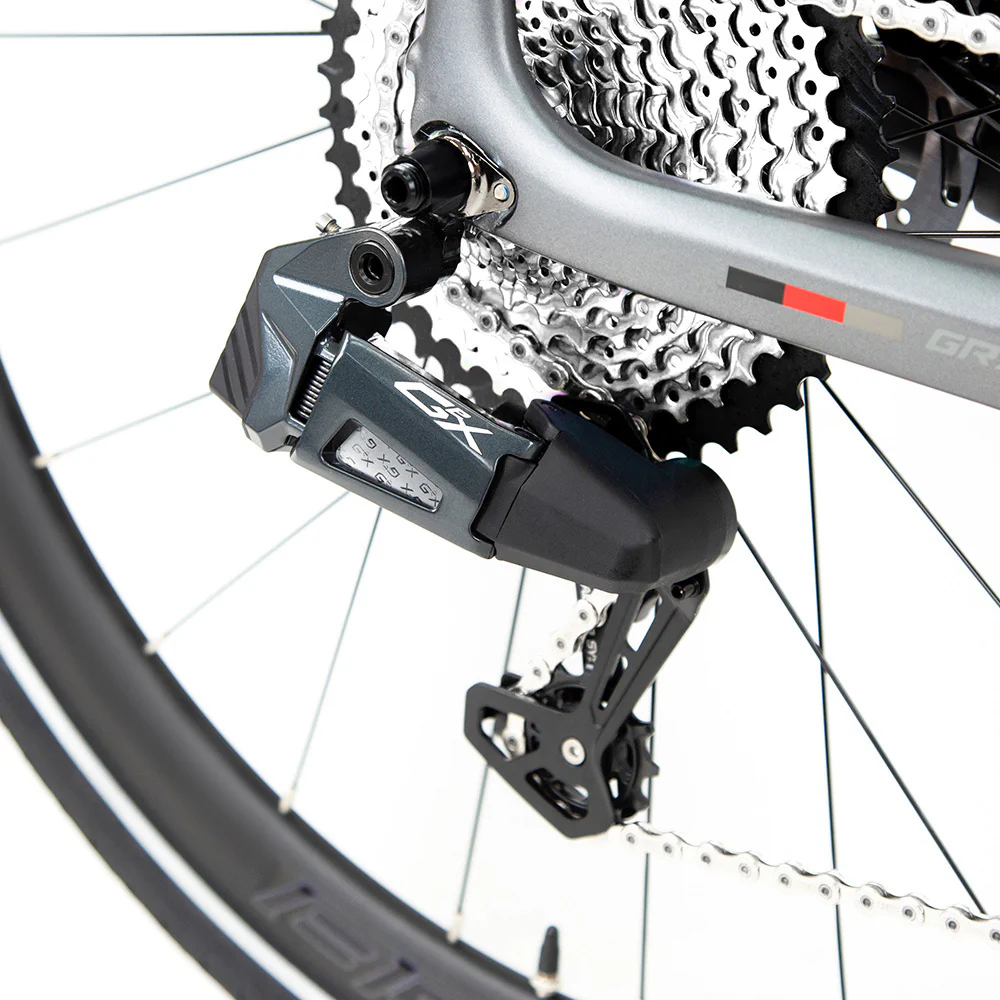

• Rear Derailleur: WheelTop GEX Wireless 13-Speed

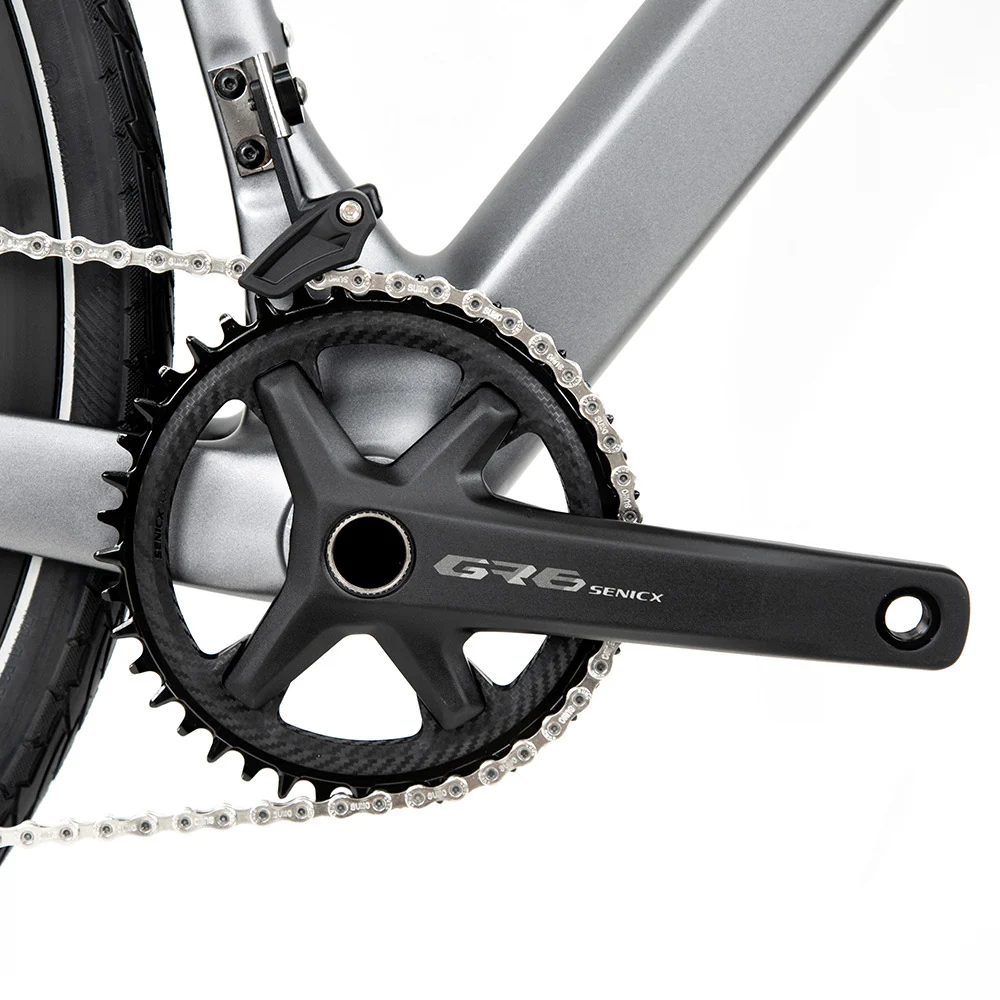

• Crankset: SENICX GR6 Aluminum Alloy Hollow 42T
• Cassette: SUNSHINE 13-Speed (11–46T)
• Chain: SUMC 13-Speed
• Brakes: WheelTop Hydraulic Disc (160/160 mm)

---

Variant 3 – SRAM RIVAL eTap AXS 1×12 Wireless Hydraulic

• System: SRAM RIVAL eTap AXS 1×12-Speed (Wireless & Hydraulic)
• Front Derailleur: None
• Rear Derailleur: SRAM RIVAL XPLR eTap AXS 12-Speed
• Crankset: SRAM RIVAL DUB WIDE 42T
• Cassette: SRAM XG 1251 XPLR 12-Speed (10–44T)
• Chain: SRAM RIVAL 12-Speed
• Brakes: SRAM RIVAL Hydraulic Disc (CLX 160/160 mm)

---

Wheelset & Tires

• Hubs: RS Aluminum Alloy & Carbon Fiber, 4 Sealed Bearings, HG Freehub, CenterLock Disc, F12×100 / R12×142
• Rims: RS AL7005 Aluminum Alloy, Double Wall, Matte Finish, W19×H38 mm
• Spokes: SHUNJIU Circular 14G
• Tires: MAXXIS OVERDRIVE 700×40C with Reflective Edge

---

Braking System

• Brakes: Hydraulic Disc (160 mm Front / 160 mm Rear), drivetrain dependent

---

Additional Components

• Saddle: Lightweight and Comfortable Racing Saddle
• Pedals: Lightweight and Skid-Resistant
• Cables: JAGWIRE Premium Cable System

---

Included Accessories

• Safety Reflectors: Handlebar, Seat Post, Front and Rear Wheels
• Extras: Bottle Cage and Tool Kit
• Documents: Manual and Warranty Card
