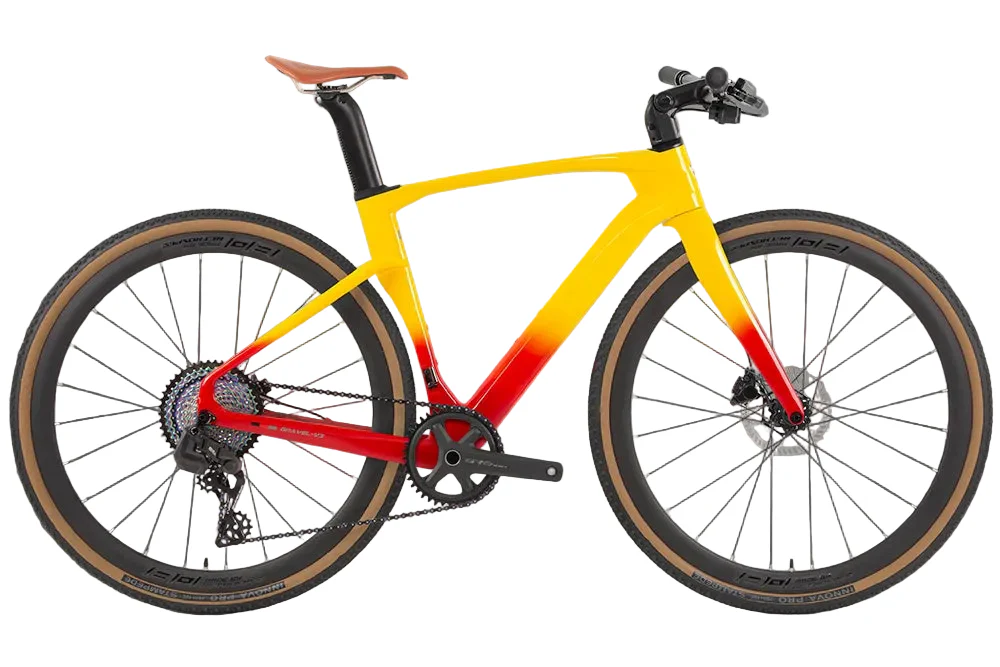

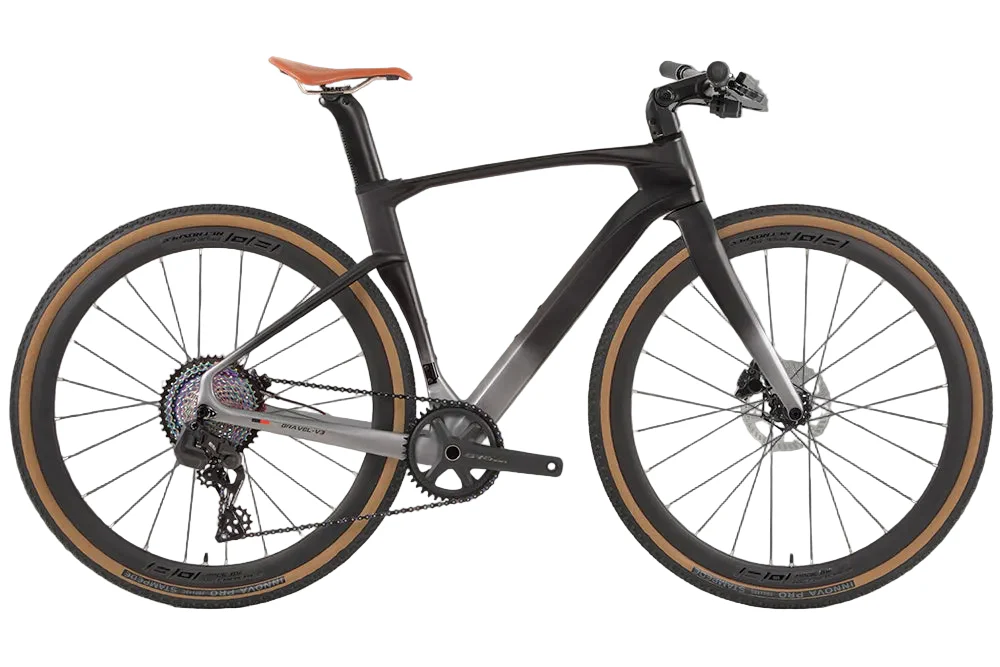

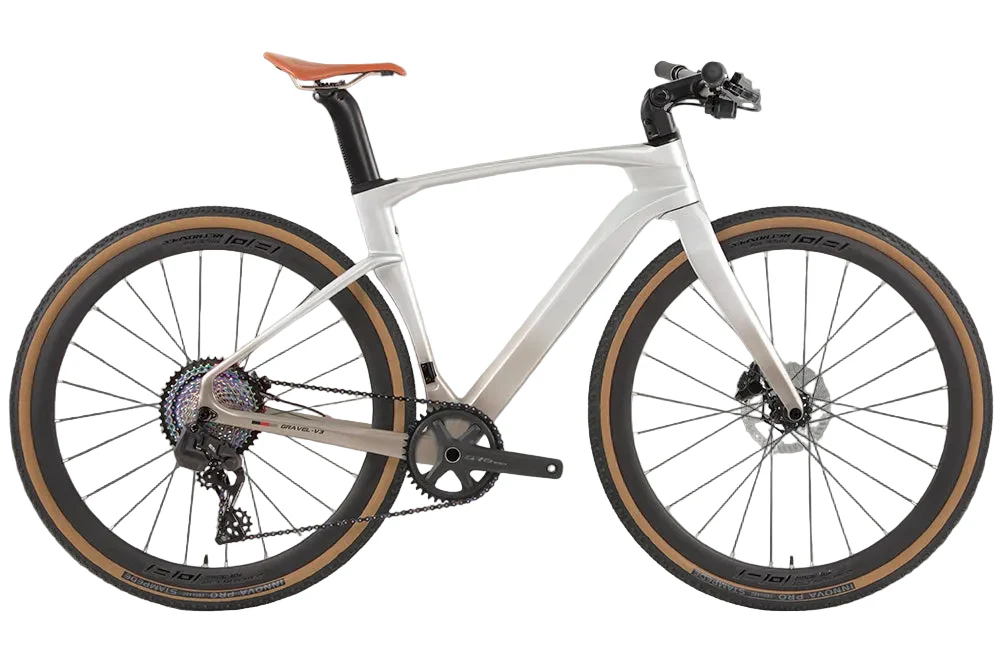

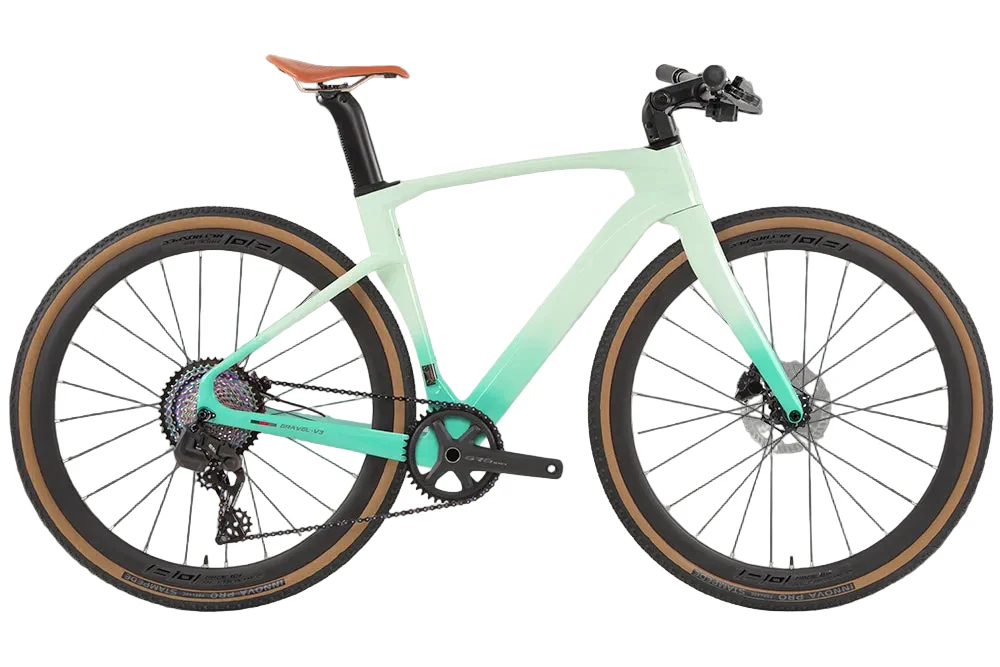

Gravel V3 - PB - Twitter Carbon Gravel Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 45 / 48 / 51 / 54 cm
• Bike Colors: White Pink / Cyan Green / Silver Ti / Black Gray / Orange Red / Others / Full Holographic
• Net Weight: 9.9 kg (LTWOO) / 10.1 kg (WheelTop)

---

Frame & Structure

• Frame: Gravel V3 (Disc & Thru-Axle 12×142), High Modulus Carbon Fiber, XC Geometry, Full Internal Cable Routing
• Fork: Gravel V3 (Disc & Thru-Axle 12×100), High Modulus Carbon Fiber, 700C
• Seat Post: High Modulus Carbon Fiber, Aero-Racing Profile
• Handlebar Set: Matte Aluminum Alloy Handlebar (31.8×720 mm) with Internal Cable Routing and Adjustable 90 mm Stem
• Clamps: Hidden Screw Fit to Frame
• Head Set: CNC Aluminum Alloy with Sealed Bearings (52×52 mm)
• Bottom Bracket: Threaded T47×24 mm
• Washer: Dedicated for Internal Cable Routing

---

Drivetrain Options

Variant 1 – LTWOO A12 2×12-Speed Hydraulic Disc (Alloy Wheel)

• System: RETROSPEC (LTWOO) A12 2×12-Speed
• Shifters: RETROSPEC (LTWOO) A12 2×12-Speed
• Front Derailleur: RETROSPEC (LTWOO) A12 2-Speed
• Rear Derailleur: RETROSPEC (LTWOO) A12 12-Speed
• Crankset: SENICX PR6 Aluminum Alloy Hollow 34/50T
• Cassette: SUNSHINE 12-Speed (11–42T)
• Chain: SUMC 12-Speed
• Brakes: PRO Flat-Mount Hydraulic Disc (160/160 mm)

---

Variant 2 – WheelTop EDS OX 1×13-Speed Wireless Hydraulic (Alloy Wheel)

• System: WheelTop EDS OX 1×13-Speed (Wireless & Hydraulic)
• Shifters: WheelTop EDS OX Wireless 13-Speed
• Front Derailleur: None
• Rear Derailleur: WheelTop EDS OX Wireless 13-Speed
• Crankset: SENICX GR6 Aluminum Alloy Hollow 42T
• Cassette: SUNSHINE 13-Speed (11–46T)
• Chain: SUMC 13-Speed
• Brakes: PRO Flat-Mount Hydraulic Disc (160/160 mm)

---

Wheelset & Tires

• Hubs: RS Aluminum Alloy & Carbon Fiber, 4 Sealed Bearings, HG Freehub, 24H Front / 24H Rear, Disc & Thru-Axle F12×100 / R12×142
• Rims: RS AL7005 Aluminum Alloy, Double Wall, Matte Finish, W19×H38 mm
• Spokes: SHUNJIU Circular 14G
• Tires: INNOVA PRO 700×40C, Skin-Color Edge

---

Braking System

• Brakes: PRO Flat-Mount Hydraulic Disc, 160 mm Front / 160 mm Rear

---

Additional Components

• Saddle: Lightweight and Comfortable Racing Saddle
• Pedals: Lightweight and Skid-Resistant
• Cables: JAGWIRE Performance Cable System

---

Included Accessories

• Safety Reflectors: Handlebar, Seat Post, Front and Rear Wheels
• Extras: Bottle Cage and Tool Kit
• Documents: Manual and Warranty Card
