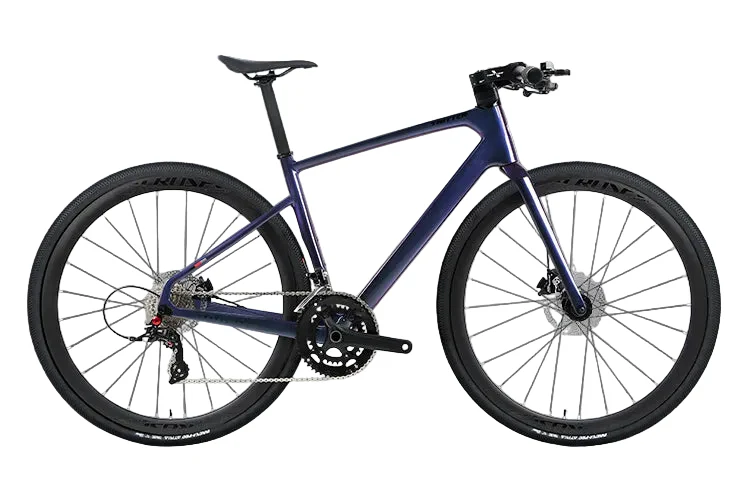

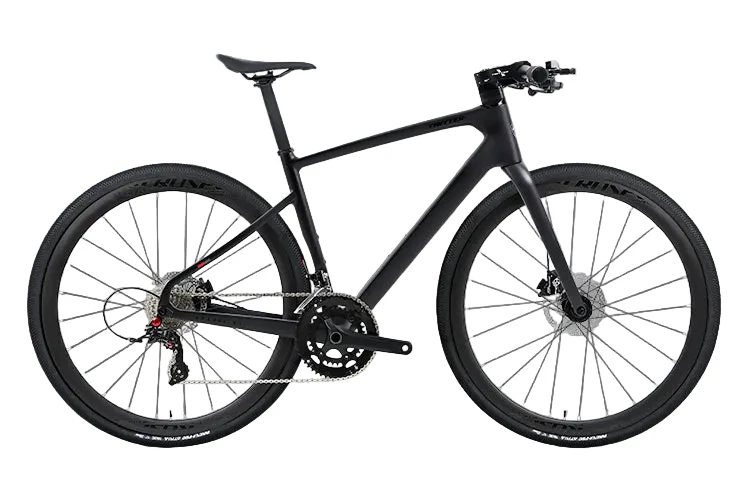

Gravel V1 - PB - Twitter Carbon Gravel Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 45 / 48 / 51 / 54 cm
• Bike Colors: Matte Black / Matte Dark Gray / Gloss White / Full Holographic
• Net Weight: 9.9 kg

---

Frame & Structure

• Frame: Gravel V1 (Disc & Thru-Axle 12×142), High Modulus Carbon Fiber, XC Geometry, Full Internal Cable Routing
• Fork: Gravel V1 (Disc & Thru-Axle 12×100), High Modulus Carbon Fiber, 700C
• Seat Post: High Modulus Carbon Fiber, 31.6×350 mm
• Handlebar Set: Matte Aluminum Alloy Handlebar (31.8×720 mm) with 80 mm Stem
• Clamps: Aluminum Alloy Quick-Release, 34.9 mm
• Head Set: CNC Aluminum Alloy with Sealed Bearings (52×52 mm)
• Bottom Bracket: Press-Fit BB92×41×24 mm, Hollow Bearings
• Washer: Dedicated for Internal Cable Routing

---

Drivetrain Options

Variant 1 – LTWOO A12 2×12-Speed Hydraulic Disc (Alloy Wheel)

• System: LTWOO A12 2×12-Speed
• Shifters: LTWOO A12 2×12-Speed
• Front Derailleur: LTWOO A12 2-Speed
• Rear Derailleur: LTWOO A12 12-Speed
• Crankset: Prowheel ARP Aluminum Alloy Hollow 34/50T
• Cassette: SUNSHINE 12-Speed (11–42T)
• Chain: SUMC 12-Speed
• Brakes: RS-R610 Hydraulic Disc (160/160 mm)

---

Variant 2 – SHIMANO DEORE M6100 1×12-Speed Hydraulic Disc (Alloy Wheel)

• System: SHIMANO DEORE M6100 1×12-Speed
• Shifters: SHIMANO DEORE M6100 12-Speed
• Front Derailleur: None
• Rear Derailleur: SHIMANO DEORE M6100 12-Speed
• Crankset: SENICX FM3 Aluminum Alloy Hollow 36T
• Cassette: SUNSHINE 12-Speed (11–50T)
• Chain: SUMC 12-Speed
• Brakes: RS-R610 Hydraulic Disc (160/160 mm)

---

Wheelset & Tires

• Hubs: RS Aluminum Alloy & Carbon Fiber, 4 Sealed Bearings, HG Freehub, 24H Front / 24H Rear, Disc & Thru-Axle F12×100 / R12×142
• Rims: RS AL7005 Aluminum Alloy, Double Wall, Matte Finish, W19×H30 mm
• Spokes: SHUNJIU Circular 14G
• Tires: INNOVA 700×38C, Black

---

Braking System

• Brakes: RS-R610 Hydraulic Disc, 160 mm Front / 160 mm Rear

---

Additional Components

• Saddle: Lightweight and Comfortable Racing Saddle
• Pedals: Lightweight and Skid-Resistant
• Cables: JAGWIRE Performance Cable System

---

Included Accessories

• Safety Reflectors: Handlebar, Seat Post, Front and Rear Wheels
• Extras: Bottle Cage and Tool Kit
• Documents: Manual and Warranty Card
