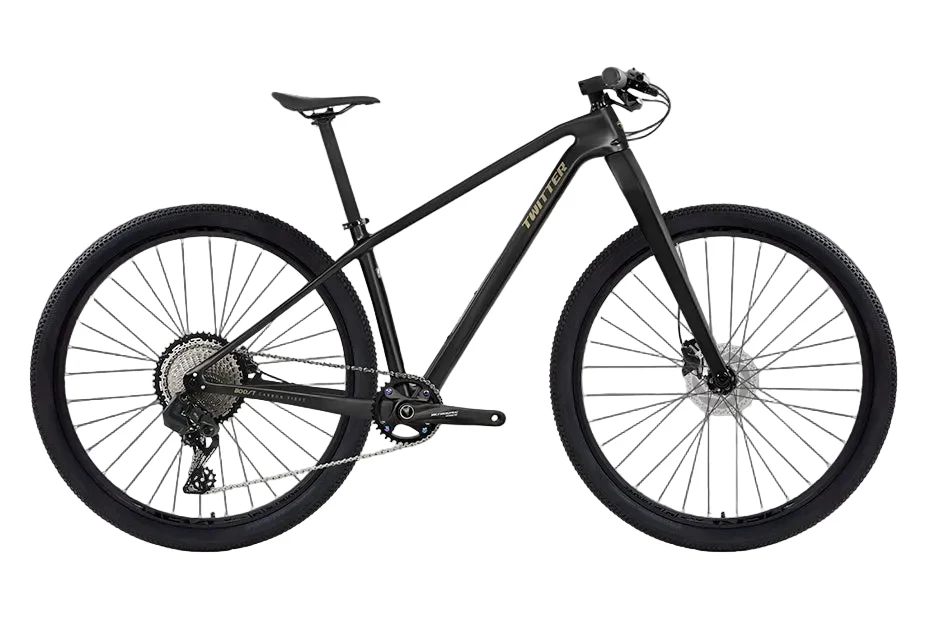

Warrior Pro - LT - Twitter Carbon Mountain Bike

Key Components

• Frame Size: 29" (27.5") × 15" / 17" / 19"
• Colors: White / Dark Red / Matte Black / Matte Dark Gray
• Weight: 9.9 kg (M6100-12S) / 10.1 kg (M8100-2×12S / RS-13S)

---

Frame & Structure

• Frame: WARRIORpro-LT, high modulus carbon fiber, XC geometry, internal cable routing, Thru-Axle 12×148 mm Boost
• Fork: TW high modulus carbon fiber MTB fork, XC-lever, Thru-Axle 15×110 mm Boost
• Handlebar: Integrated carbon handlebar & stem (720×60 mm)
• Seat Post: High modulus carbon fiber, 31.6×350 mm
• Clamps: Aluminum alloy quick release, 34.9 mm
• Headset: TW CNC aluminum alloy with sealed bearings (42×52 mm)
• Bottom Bracket: Hollow BB92×41×24 mm, press-fit
• Washer: Carbon 3K, 3×28.6×10 mm

---

Drivetrain Options

Variant 1 – SHIMANO DEORE M6100 1×12-Speed

• System: SHIMANO DEORE M6100 (1×12-speed)
• Shifters: SHIMANO DEORE M6100
• Front Derailleur: None
• Rear Derailleur: SHIMANO DEORE M6100
• Crankset: SHIMANO DEORE MT510, 34T
• Cassette: SUNSHINE 12-speed, 11–50T
• Chain: SUMC 12-speed
• Brakes: SHIMANO MT200 hydraulic disc (160 mm front / rear)

---

Variant 2 – SHIMANO XT M8100 2×12-Speed

• System: SHIMANO XT M8100 (2×12-speed)
• Shifters: SHIMANO XT M8100
• Front Derailleur: SHIMANO XT M8100 (2-speed)
• Rear Derailleur: SHIMANO XT M8120 (12-speed)
• Crankset: Prowheel aluminum alloy hollow 26-36T
• Cassette: SUNSHINE 12-speed, 11–42T
• Chain: SUMC 12-speed
• Brakes: SHIMANO MT200 hydraulic disc (160 mm front / rear)

---

Variant 3 – LTWOO AT13 1×13-Speed

• System: LTWOO AT13 (1×13-speed)
• Shifters: LTWOO AT13
• Front Derailleur: None
• Rear Derailleur: LTWOO AT13
• Crankset: SENICX-FM3 aluminum alloy hollow 36T
• Cassette: SUNSHINE 13-speed, 11–50T
• Chain: SUMC 13-speed
• Brakes: SHIMANO MT200 hydraulic disc (160 mm front / rear)

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 32H, Thru-Axle F15×110 / R12×148 mm Boost
• Rims: RS aluminum alloy, double wall with rivets, W25×H21 mm
• Spokes: SHUNJIU circular 14G
• Tires: INNOVA-PRO 29" (27.5") × 2.1", black

---

Braking System

• Brakes: SHIMANO MT200 hydraulic disc, 160 mm front / 160 mm rear

---

Additional Components

• Grips: PU leather locking grips, 22.2×120 mm
• Saddle: Lightweight and comfortable MTB design
• Pedals: Lightweight & skid-resistant
• Cables: JAGWIRE internal & external routing

---

Included Accessories

• Reflectors: Handlebar, seat post, front wheel, rear wheel
• Extras: Bottle cage + tools
• Documentation: Manual + warranty card
