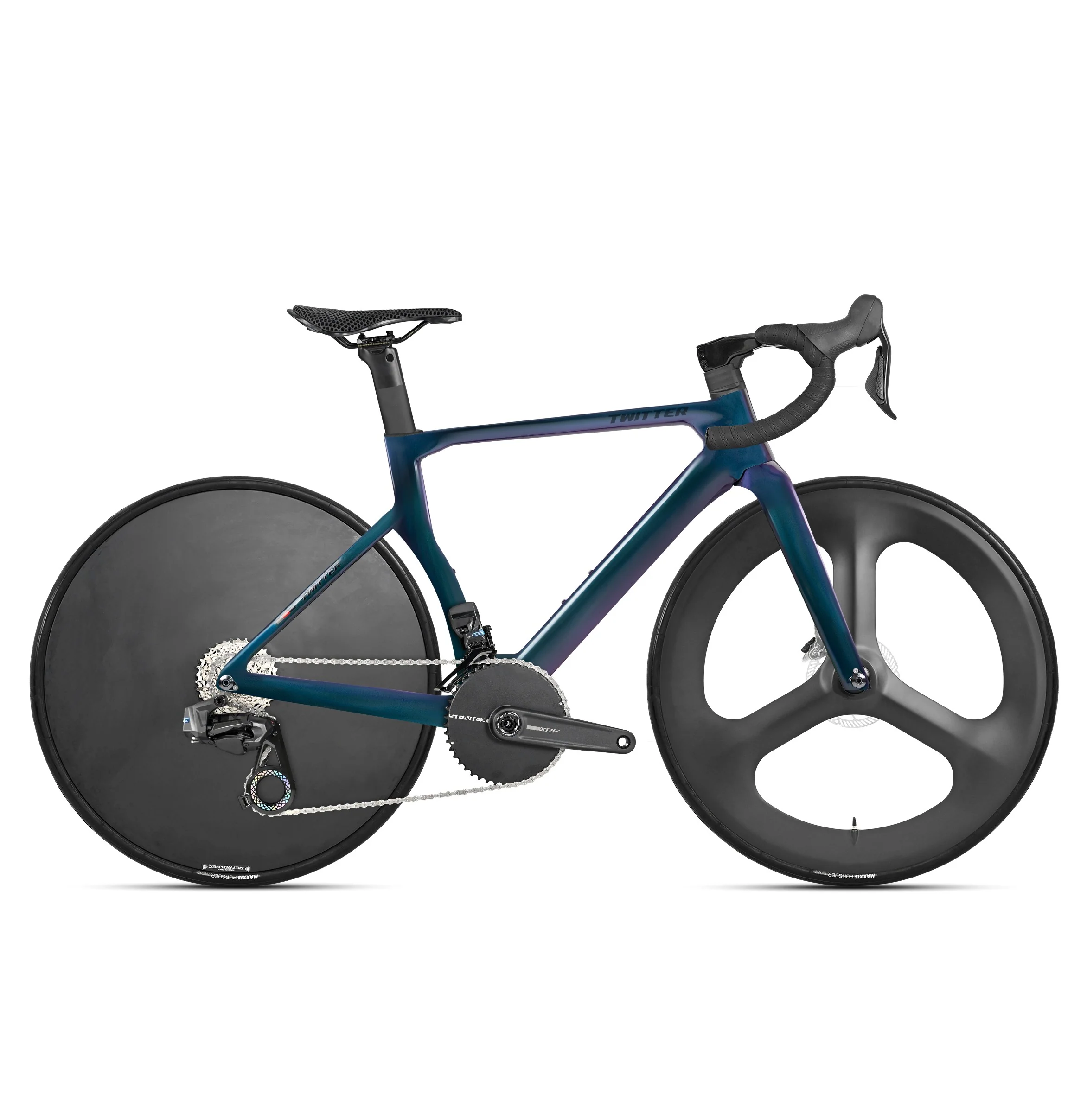

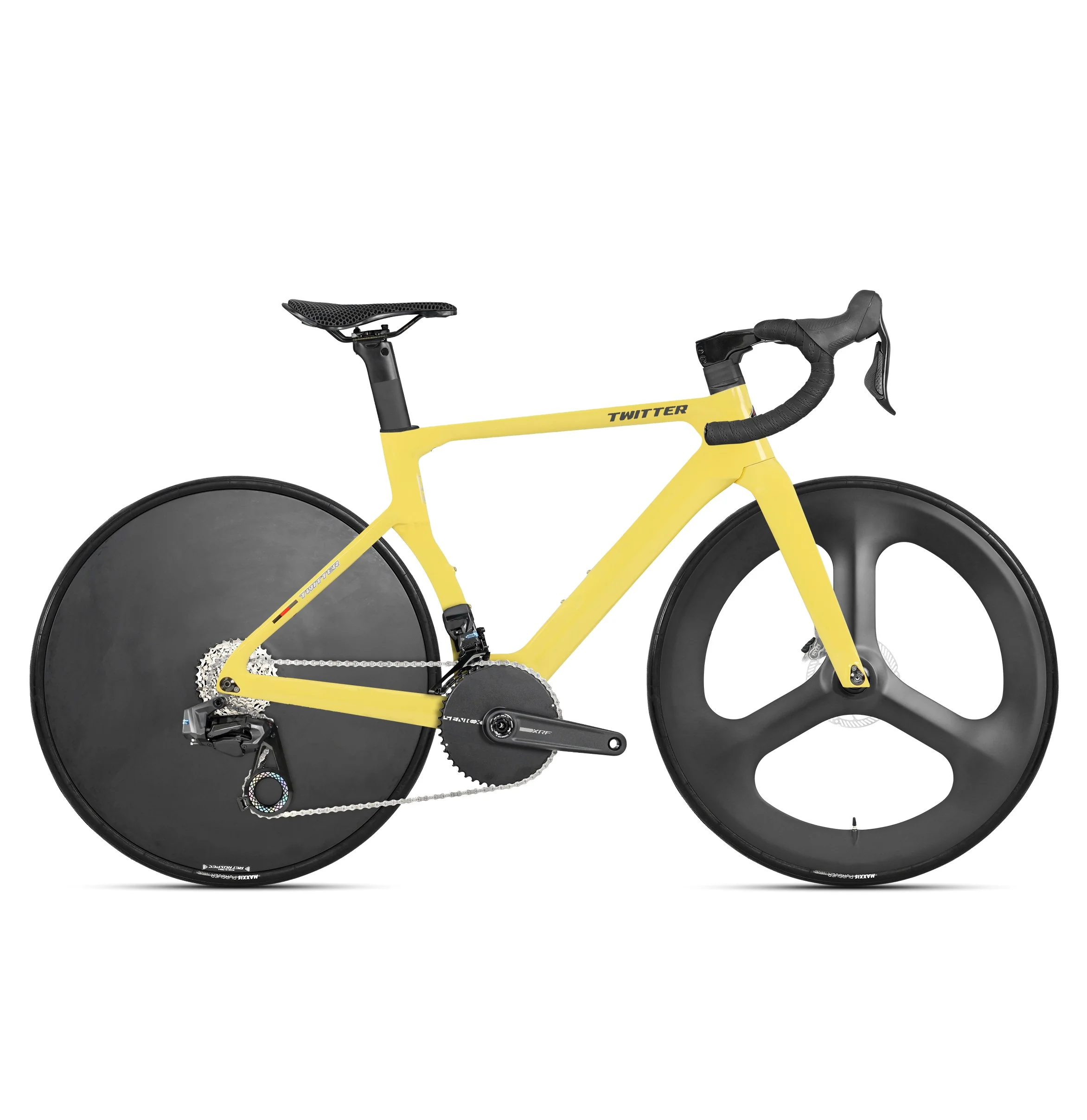

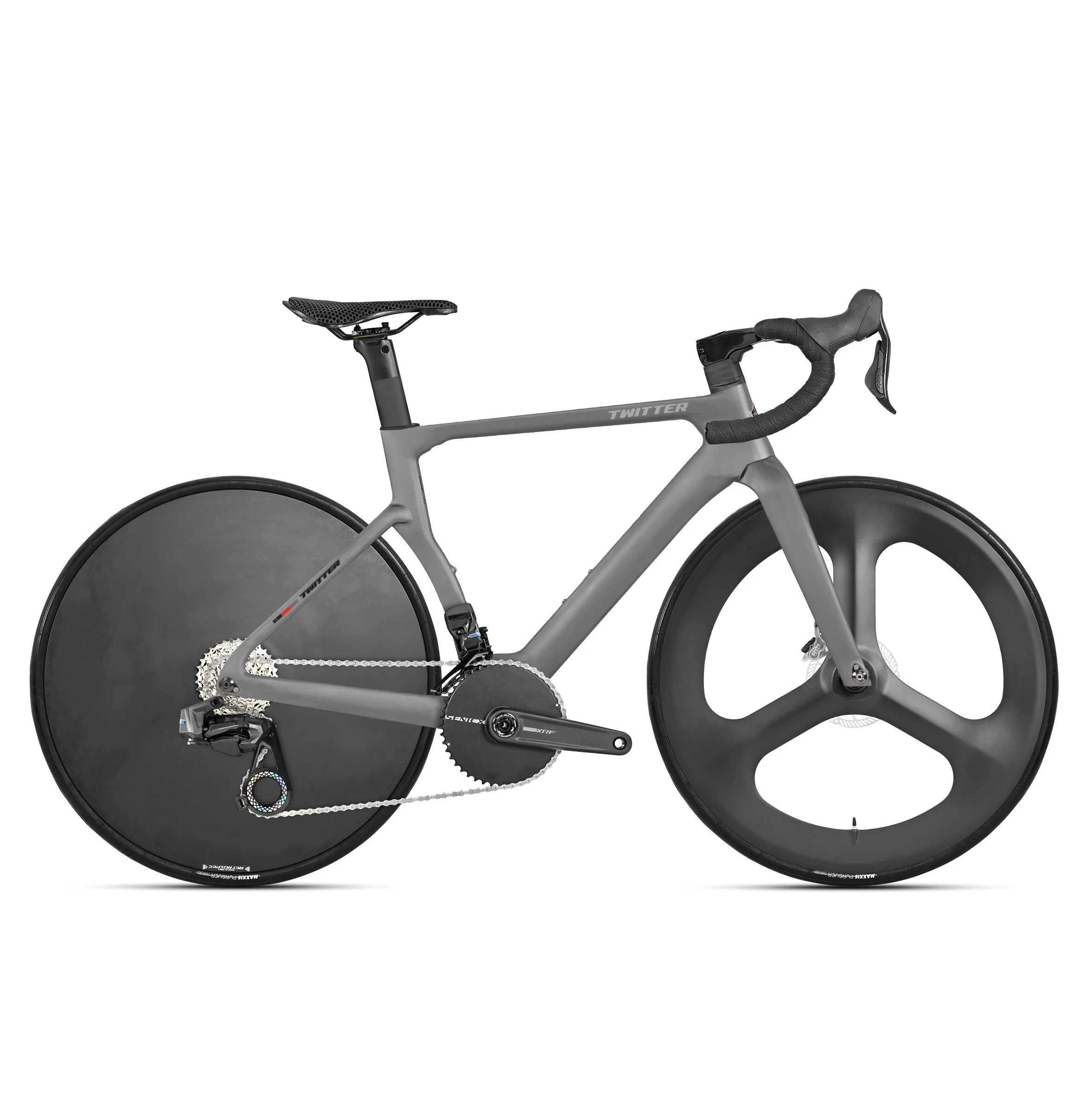

T8 Pro 3 Spoke Full Carbon Fiber Road Bike

Key Components

• Wheel Size: 700C.

• Frame Size: 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm.

• Bike Color: multiple colors available.

• Net Weight: 8.9 kg.

---

Frame & Structure

• Frame: T8 (Disc & Thru-axle 12×142mm), high modulus Carbon Fiber, Aero design, full internal cable routing.

• Fork: T8 (Disc & Thru-axle 12×100mm), high modulus Carbon Fiber, Road Rigid Fork.

• Handlebar Set: High modulus 3K Carbon Fiber Integrated Handlebar & Stem (380×80 / 400×90 / 420×100mm), full internal cable routing.

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile.

• Clamps: Hidden screw fit to frame.

• Head Set: CNC aluminum alloy with sealed bearings (52×52mm).

• Washer: Dedicated for internal cables.

• Bottom Bracket: Threaded T47, Hollow Bearings (29mm or 24mm).

---

Drivetrain Options

Variant 1 – Wheeltop EVO TX Wireless (24S):

• Derailleur Handle: Wheeltop EVO TX wireless 2×12S (carbon shifter).

• Front Derailleur: Wheeltop EVO TX wireless 2-speed.

• Rear Derailleur: Wheeltop EVO TX wireless 12-speed Carbon, large carbon jockey wheels.

• Crankset: SENICX-XRF Aluminum Alloy DUB 30–46T.

• Cassette: SHIMANO 105/R7100, 12-speed, 11–34T.

• Chain: SHIMANO HG6100-12S.

• Bottom Bracket: Threaded T47×29mm, Hollow Bearings.

• Brake: CNC four-piston hydraulic disc, IIIPRO Centerlock heat-dissipating rotors 160/160mm.

Variant 2 – SHIMANO 105/R7100 (24S):

• Derailleur Handle: SHIMANO 105/R7120 2×12S.

• Front Derailleur: SHIMANO 105/R7100 2-speed.

• Rear Derailleur: SHIMANO 105/R7100 12-speed.

• Crankset: SHIMANO 105/R7100 Hollow, 34–50T.

• Cassette: SHIMANO 105/R7100, 12-speed, 11–34T.

• Chain: SHIMANO HG6100-12S.

• Bottom Bracket: Threaded T47×24mm, Hollow Bearings.

• Brake: SHIMANO 105/R7070 hydraulic disc, IIIPRO Centerlock heat-dissipating rotors 160/160mm.

---

Wheelset & Tires

• Hubs: RS Aluminum Alloy, 36T Ratchet System, 4 sealed bearings, Centerlock Disc, Thru-Axle F12×100 / R12×142.

• Rims: RS high-modulus Carbon Fiber, front tri-spoke wheel & rear disc wheel.

• Tires: MAXXIS PURSUER, lightweight folding, 700×28C, black.

---

Additional Components

• Belt: PU, comfortable & skid-resistant.

• Saddle: 3D printed lightweight saddle.

• Pedals: Lightweight & skid-resistant design.

• Cables: JAGWIRE performance cables.

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel).

• PC bottle cage + tools.

• Instruction manual + warranty card.
