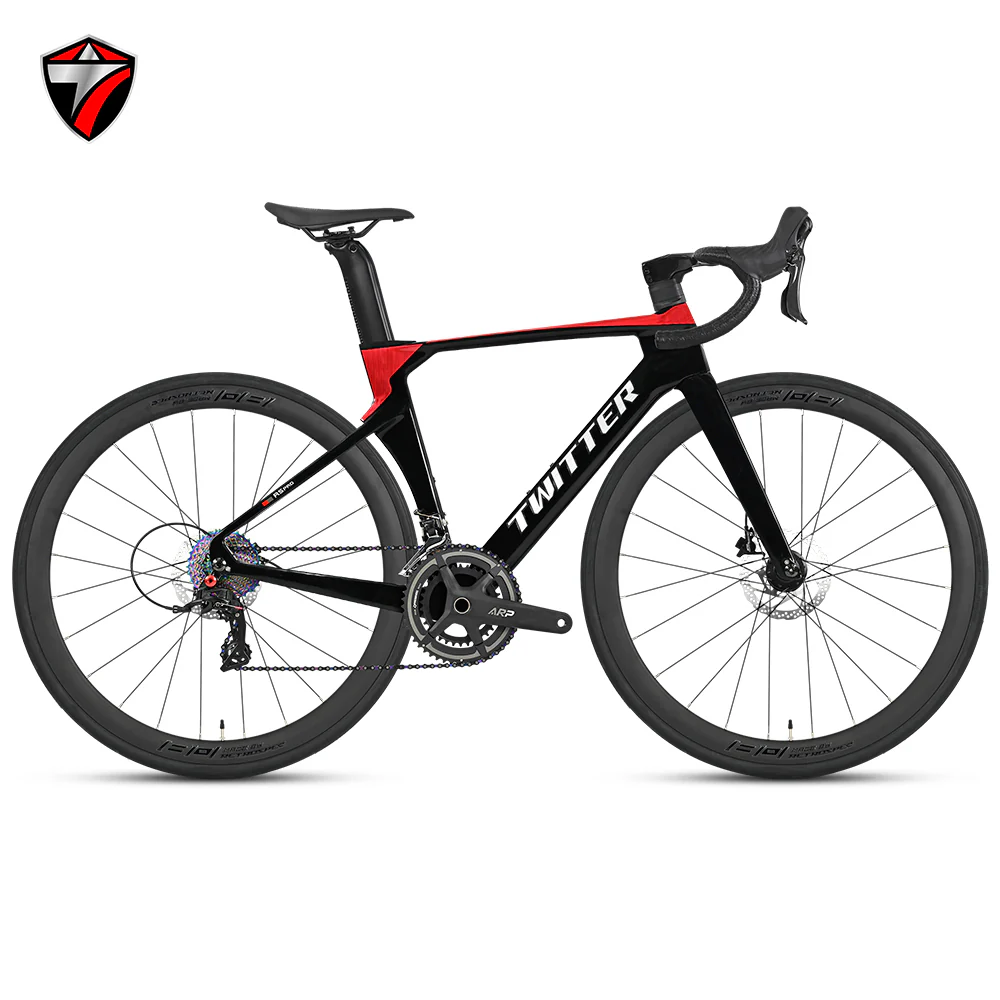

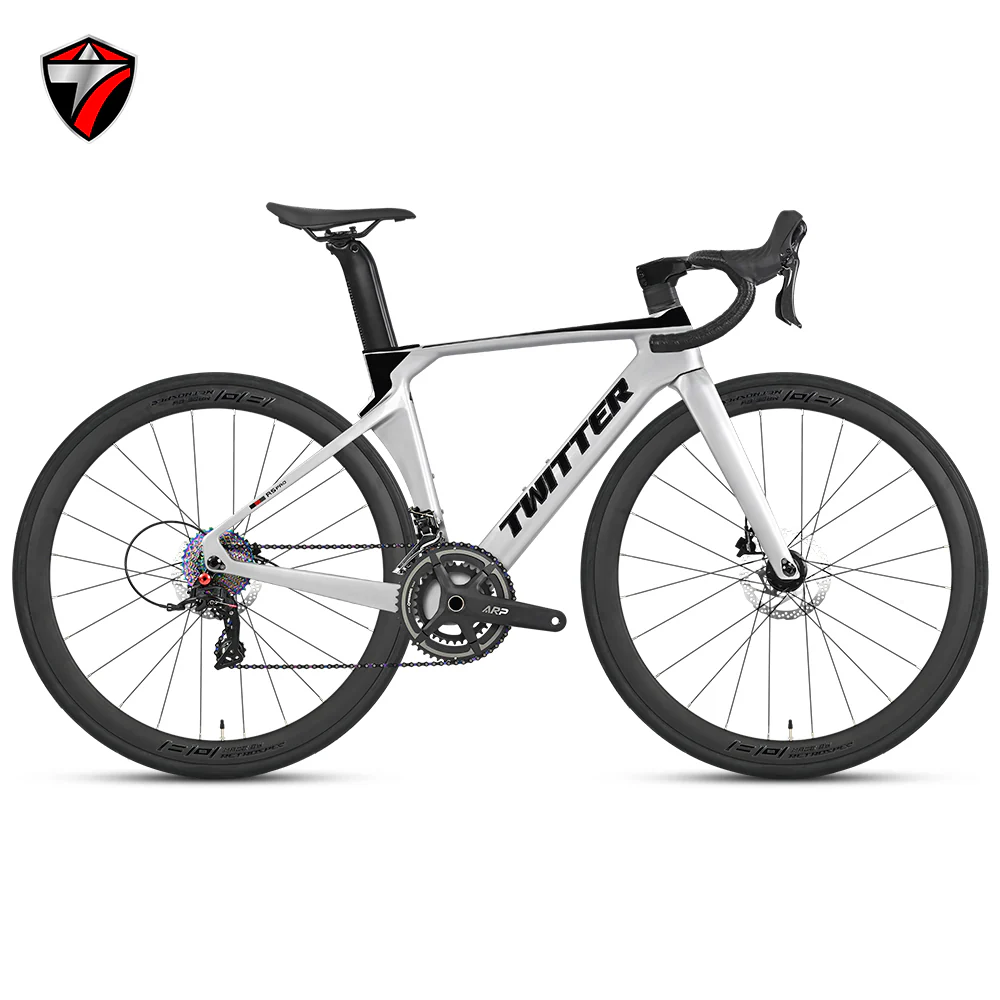

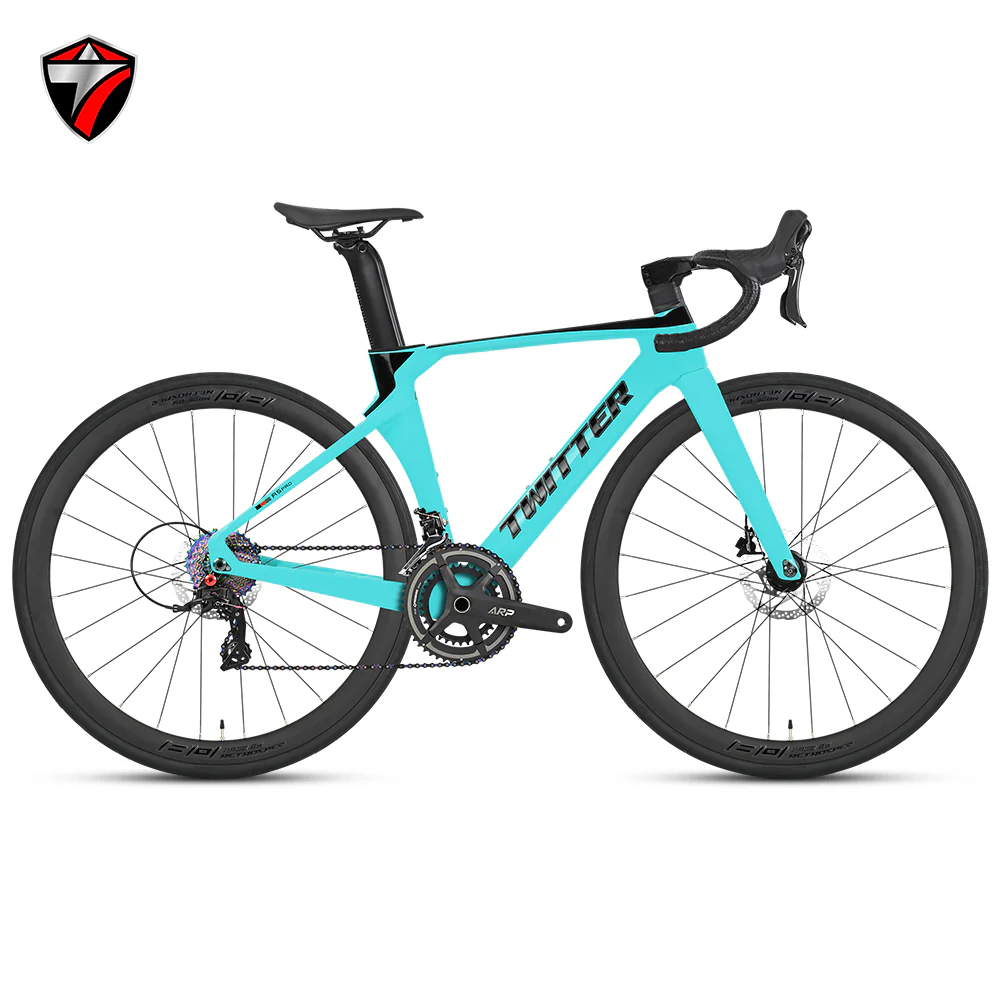

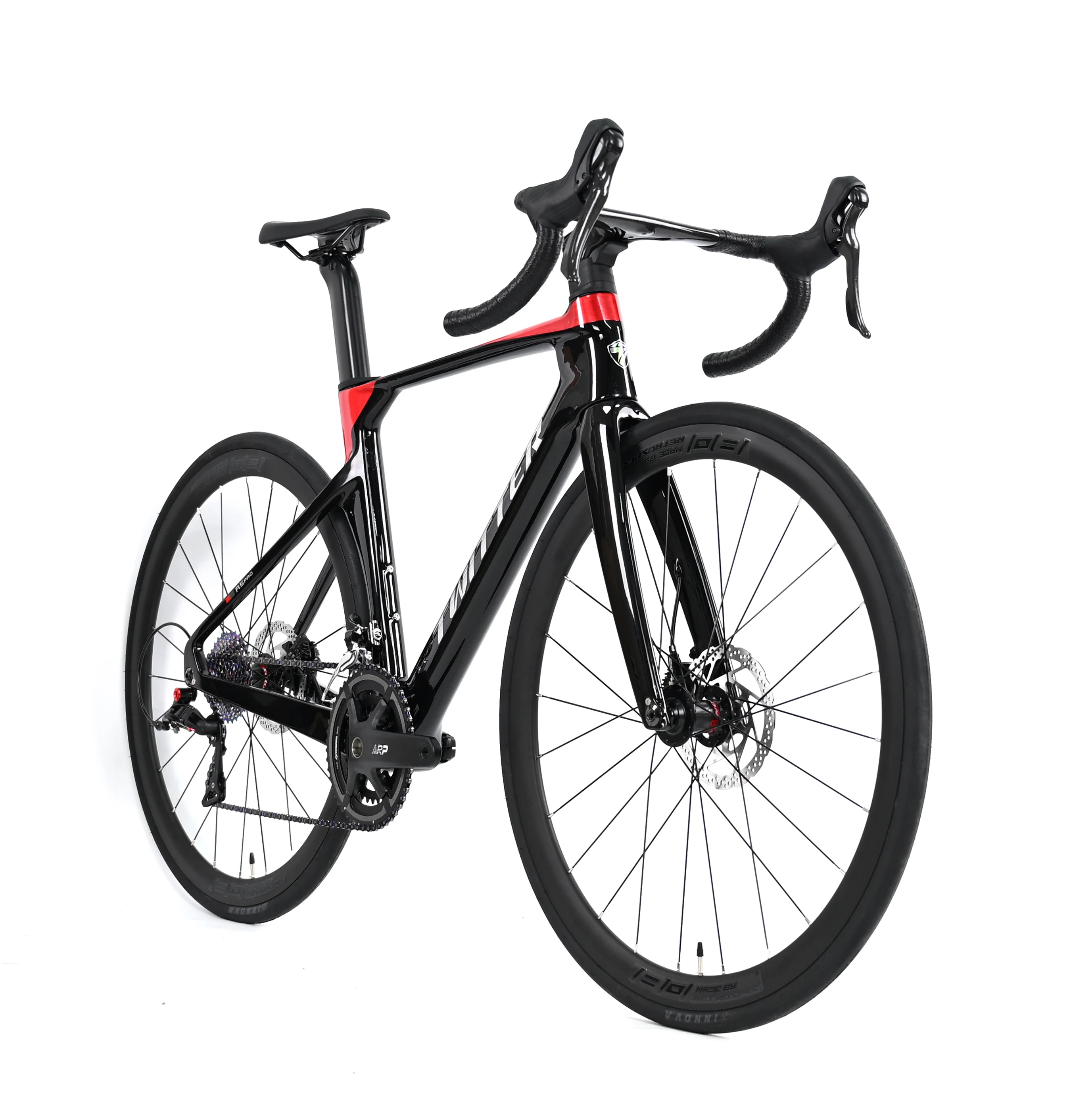

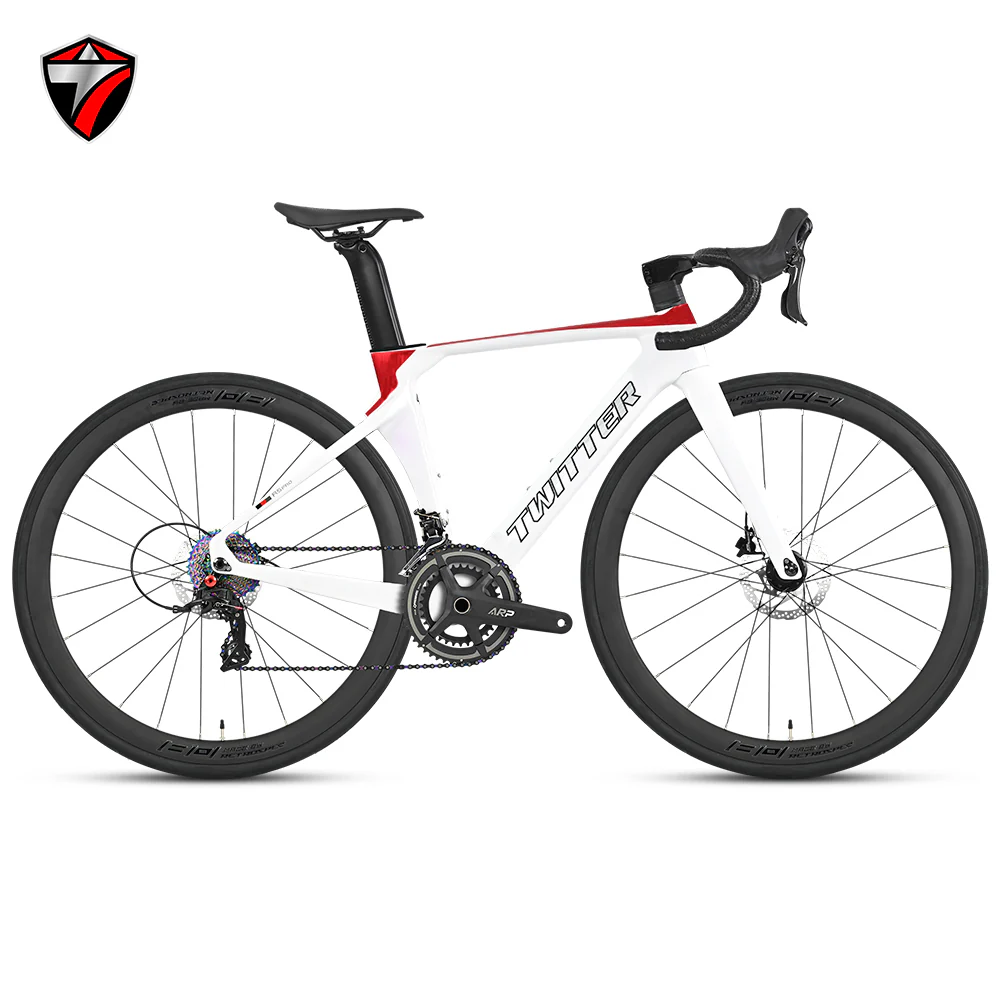

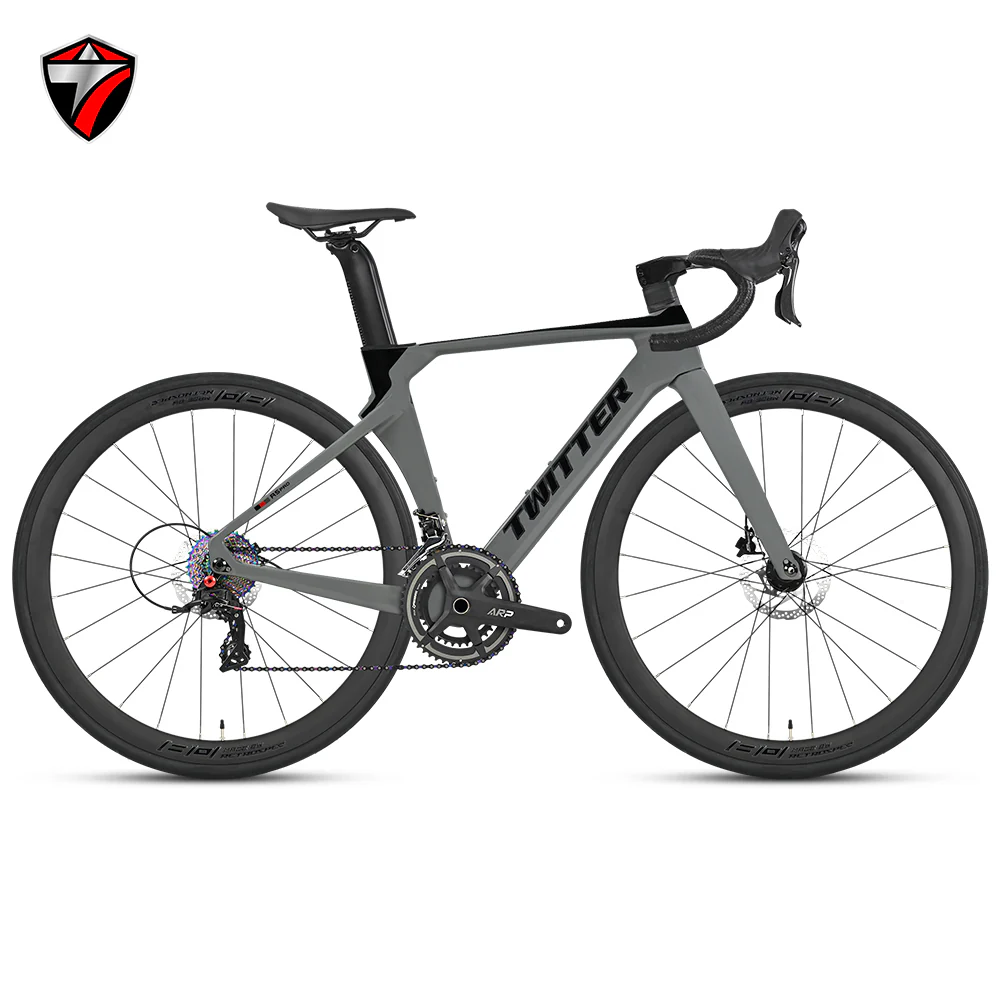

R5 Pro - Term - Carbon Road Bike

R5 Pro - Term - Carbon Road Bike

Key Components

  • Wheel Size: 700C
  • Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm

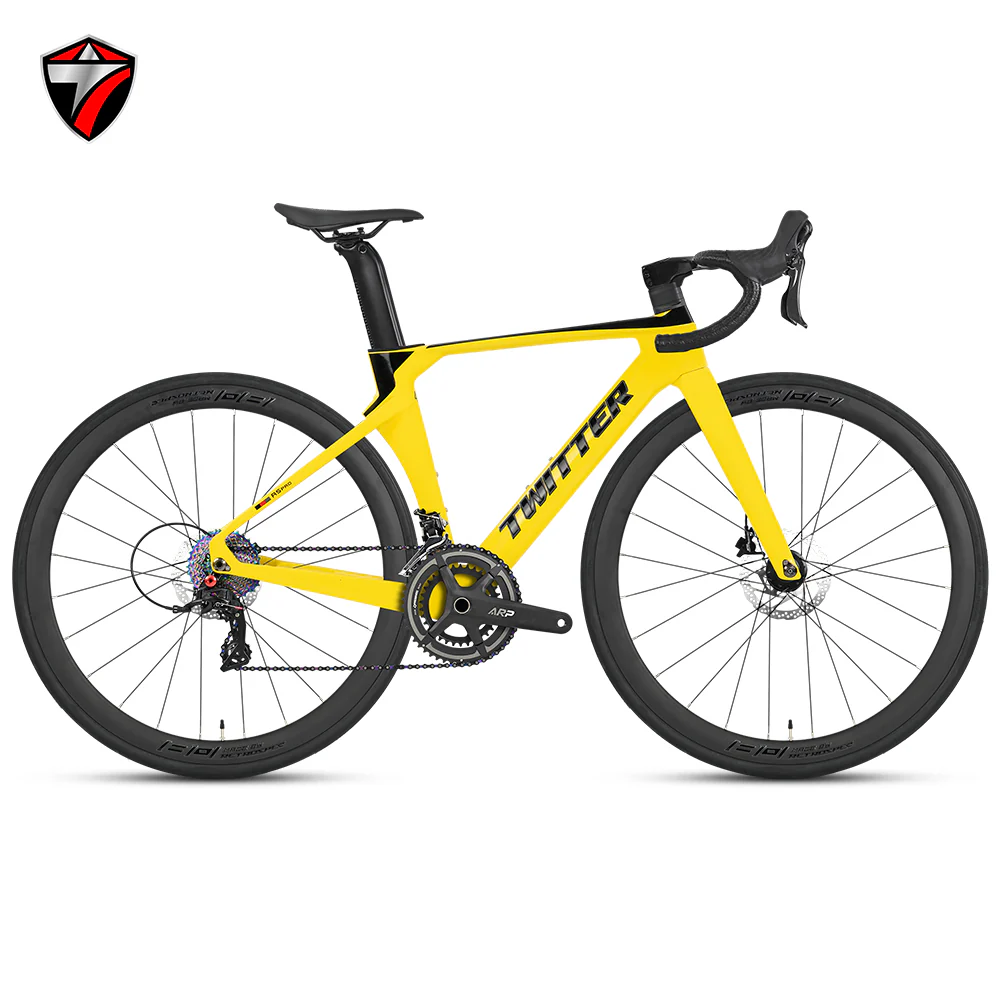

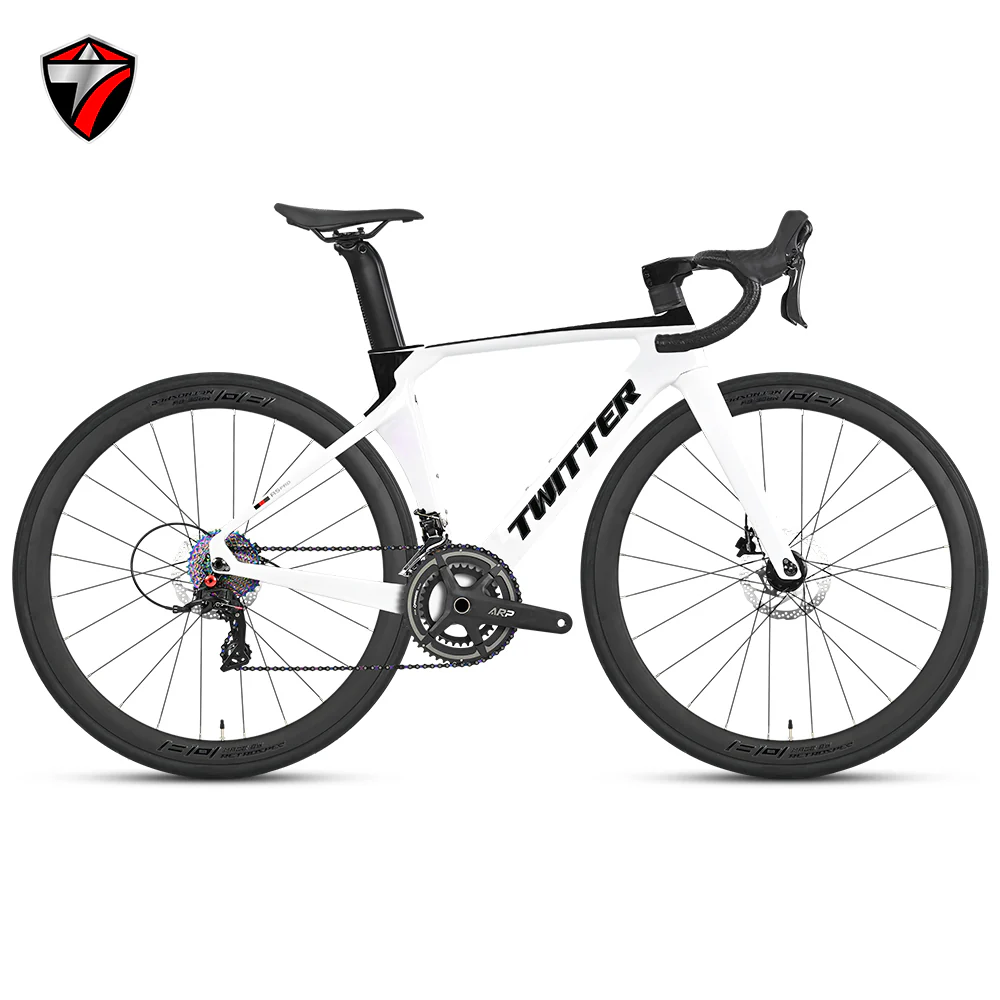

  • Colors: White/Black / White/Red / Black/Red / Matte Black / Matte Gray / Yellow / Others / Full Holographic
  • Weight: 9.3 kg (all variants)

Frame & Structure

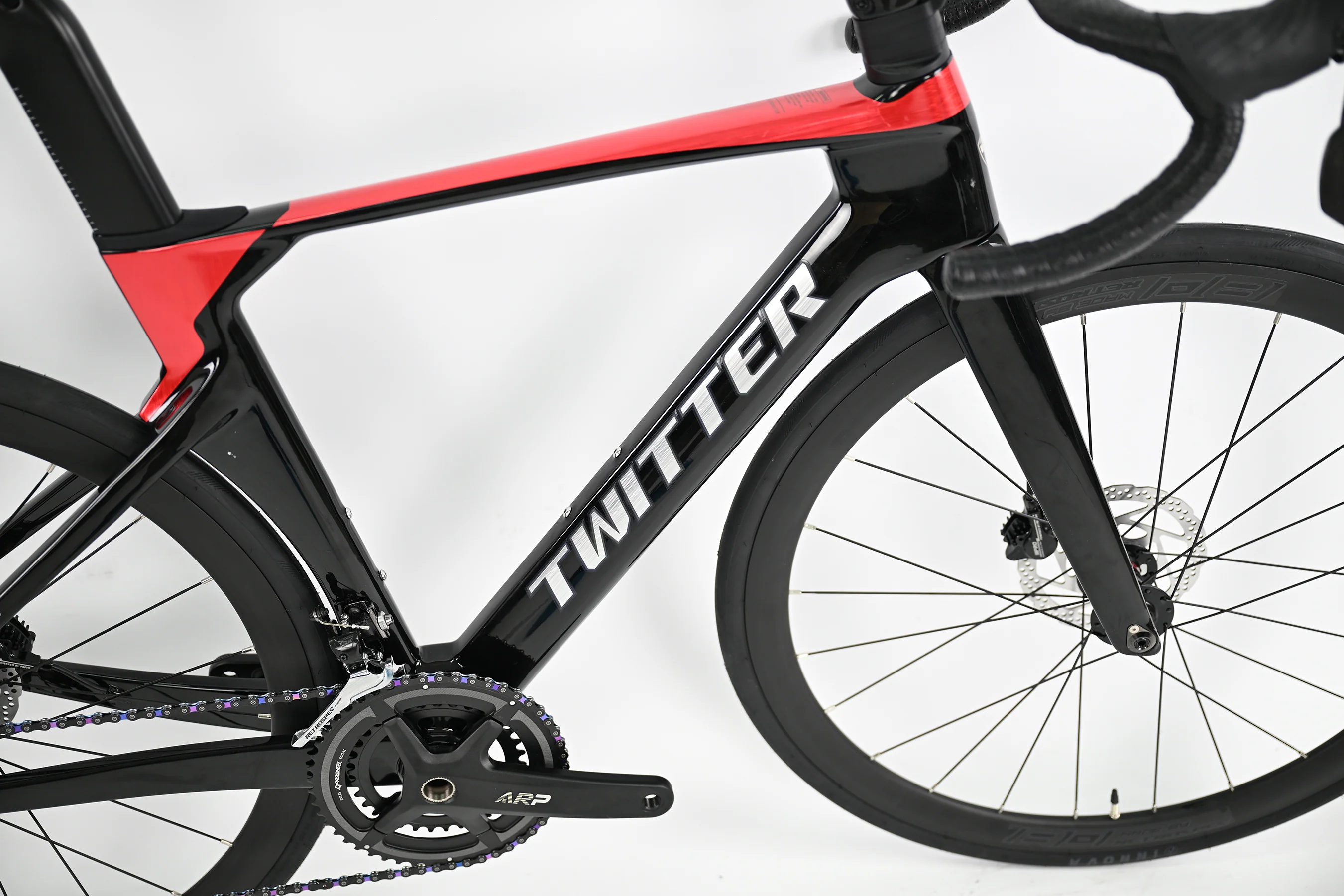

  • Frame: R5pro (Disc & Thru-Axle 12×142), high modulus carbon fiber, Aero-Racing geometry with internal cable routing
  • Fork: R5pro (Disc & Thru-Axle 12×100), high modulus carbon fiber, 700C

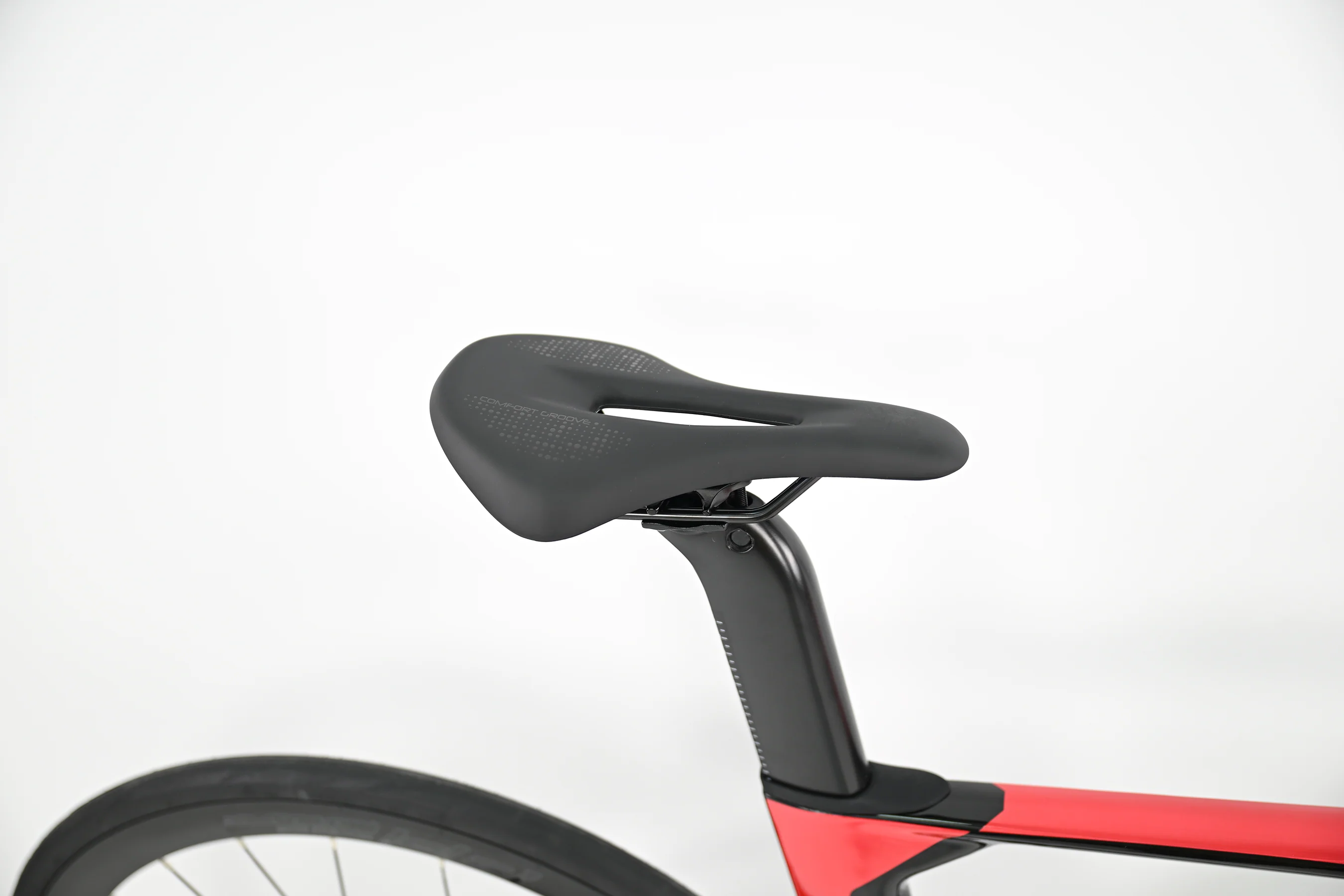

  • Seat Post: High modulus carbon fiber, Aero-Racing design

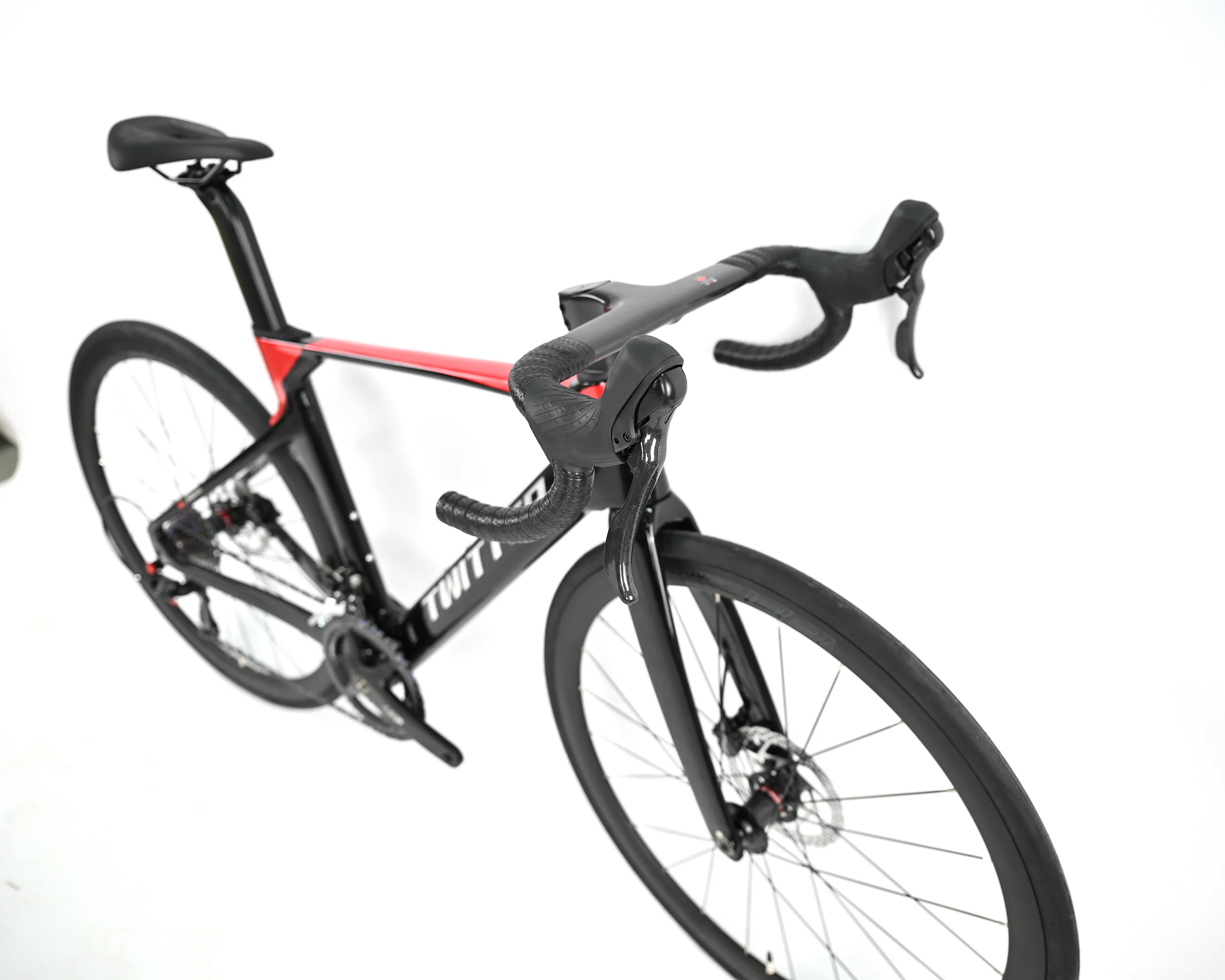

  • Handlebar: TW 3K carbon fiber integrated handlebar & stem (420×90 mm), full internal cable routing
  • Clamps: Hidden screw fit to frame

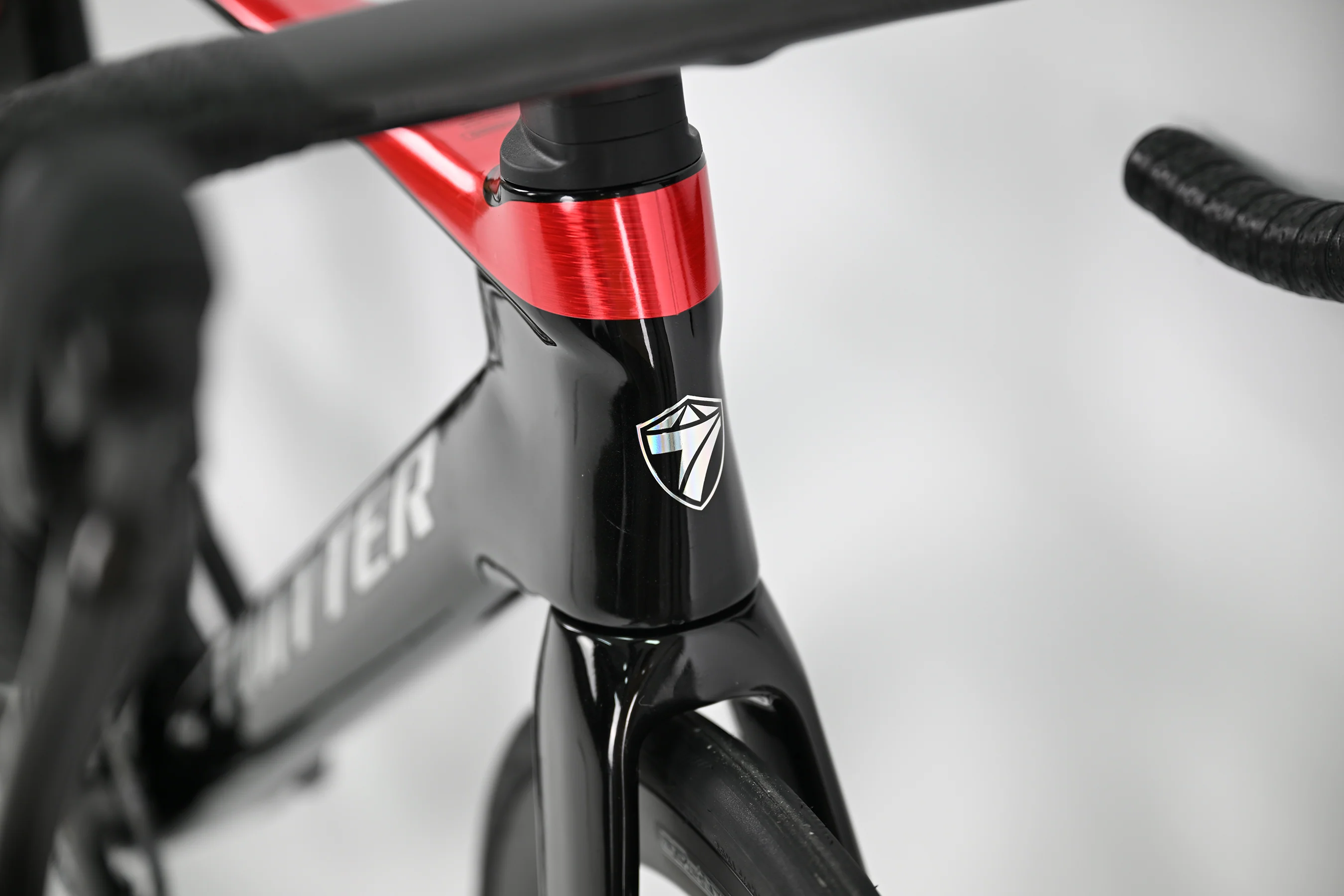

  • Headset: CNC aluminum alloy with sealed bearings (52×52 mm)
  • Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
  • Washer: Special for internal cable routing

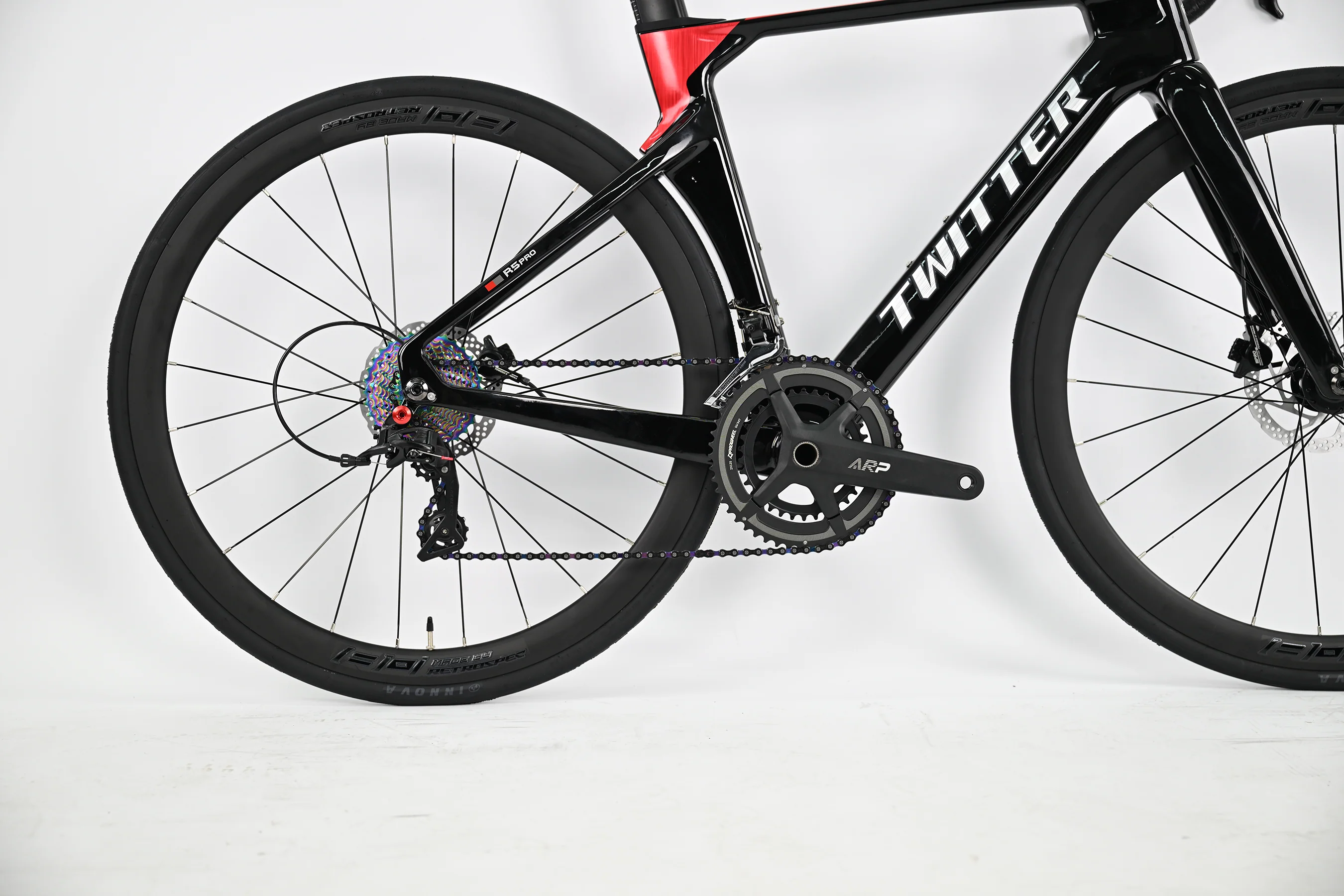

Drivetrain Options

Variant 1 – RS (SENSAH) 2×12-Speed Hydraulic, Alloy Wheel

  • System: RS-24S (2×12-speed, hydraulic)
  • Shifters: SENSAH HRD6900-R (2×12-speed)

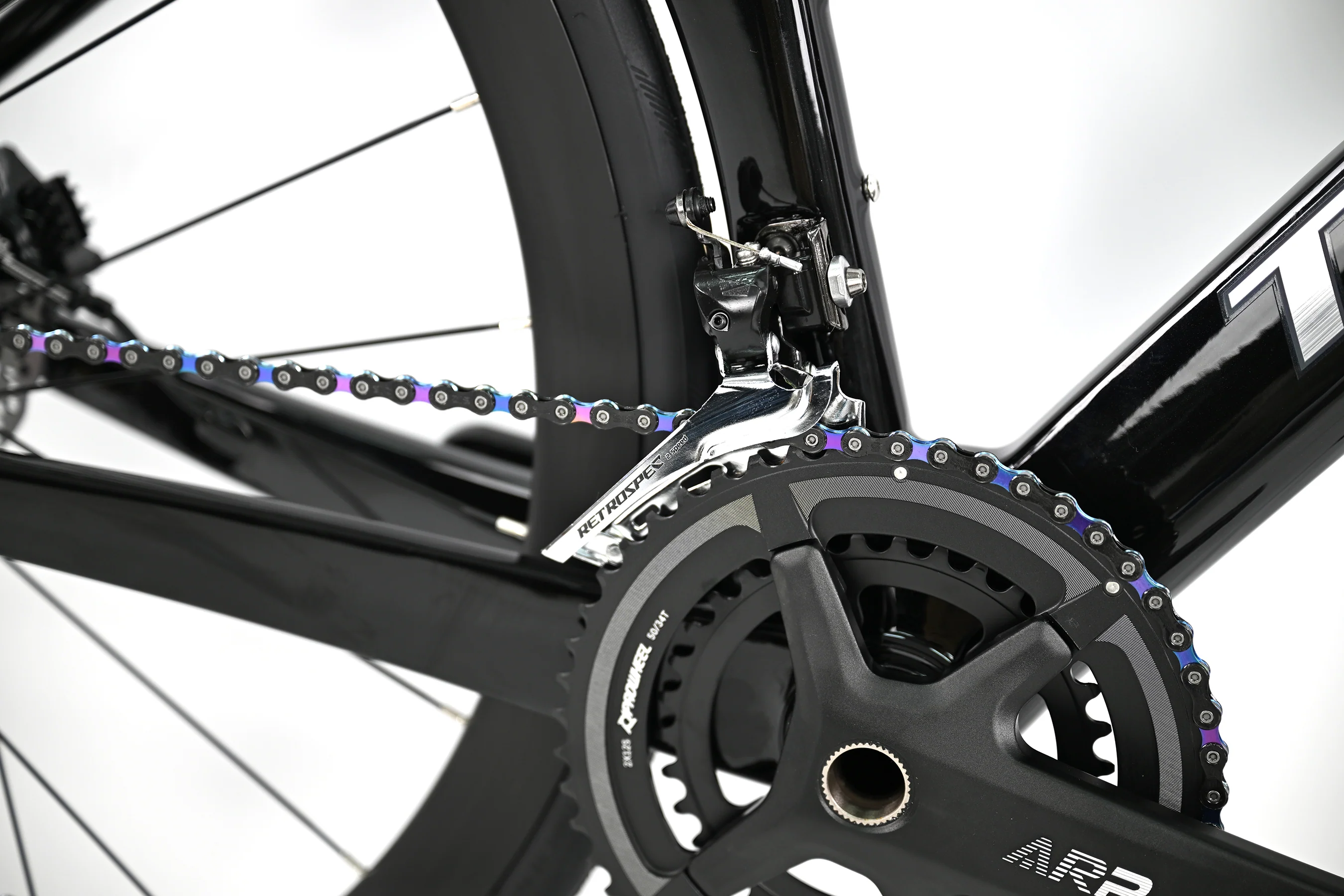

  • Front Derailleur: SENSAH Z2 (2-speed)

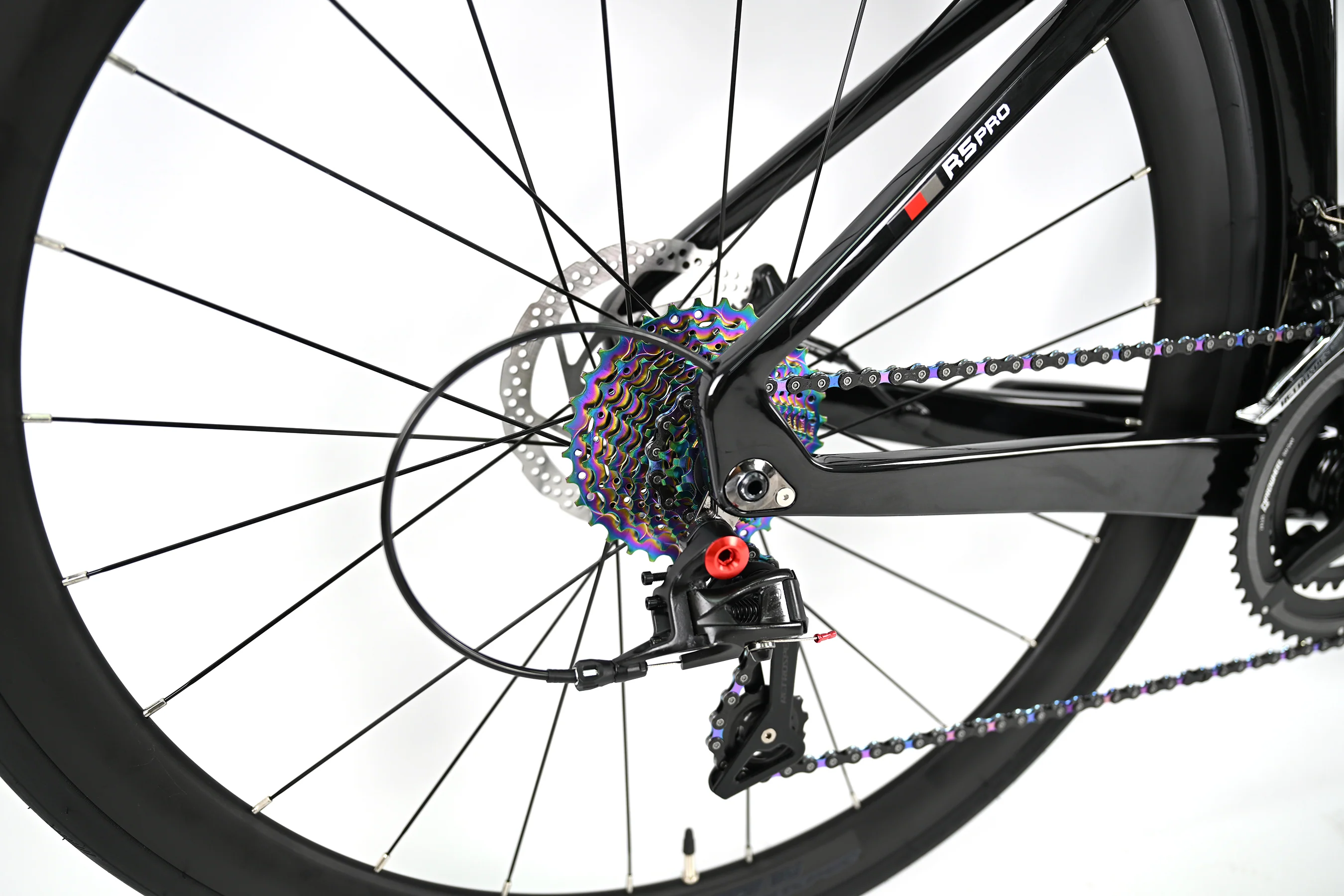

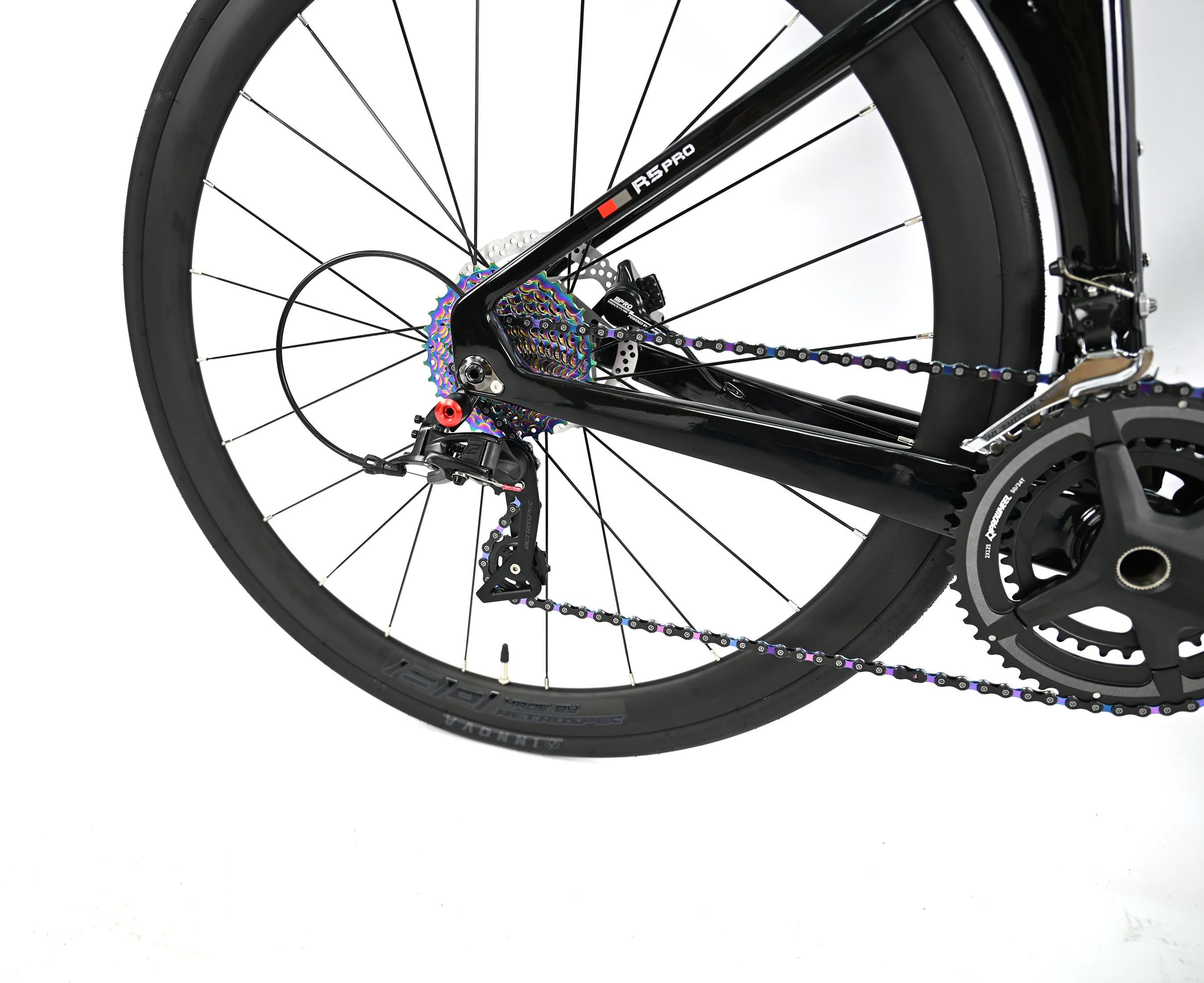

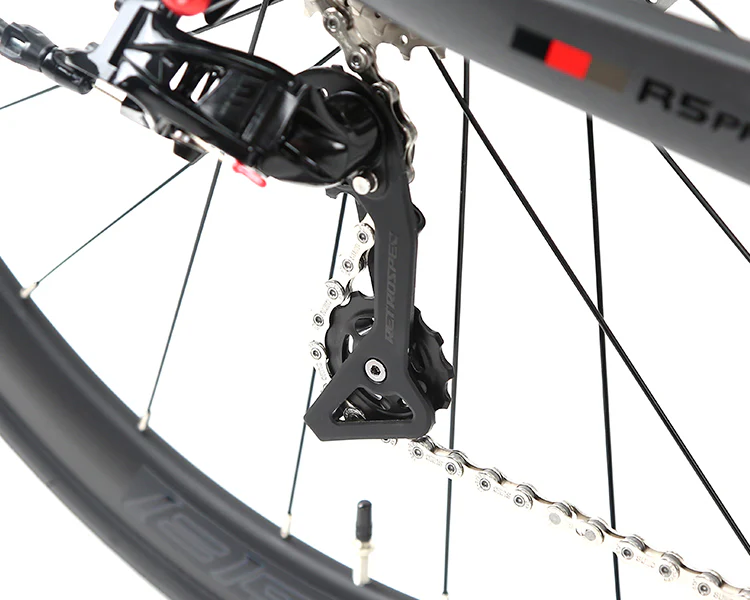

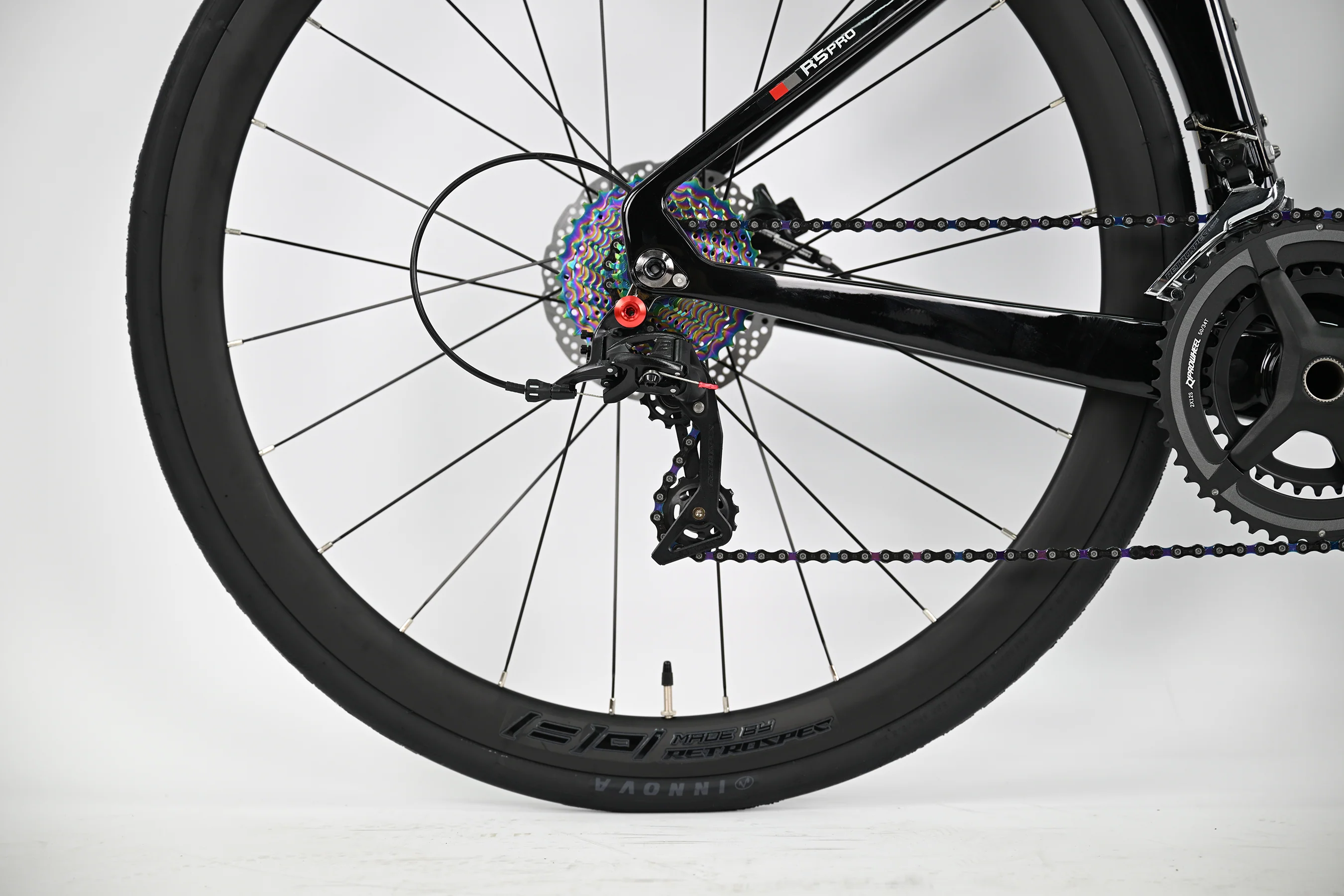

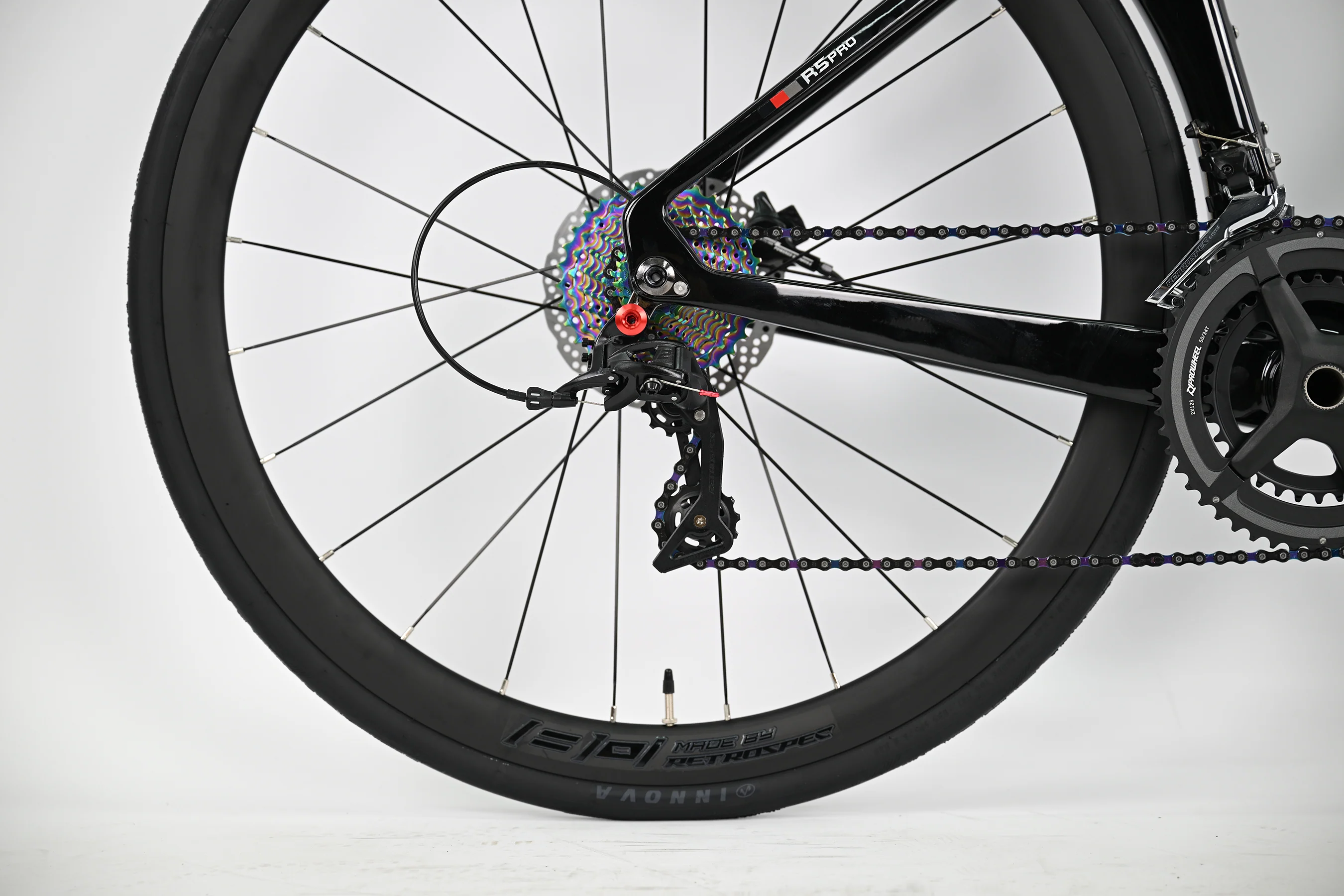

  • Rear Derailleur: SENSAH RD8500-GS (12-speed)

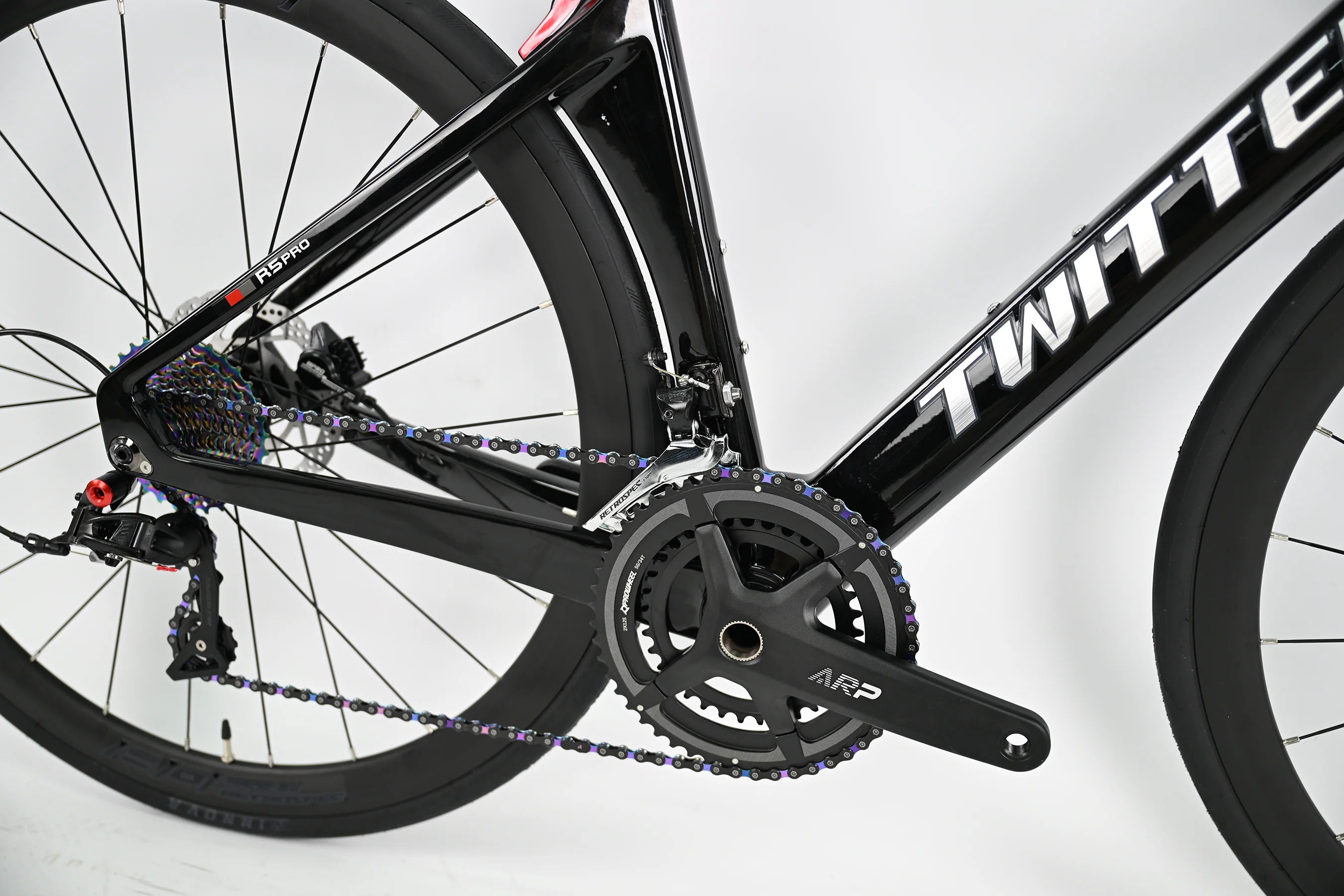

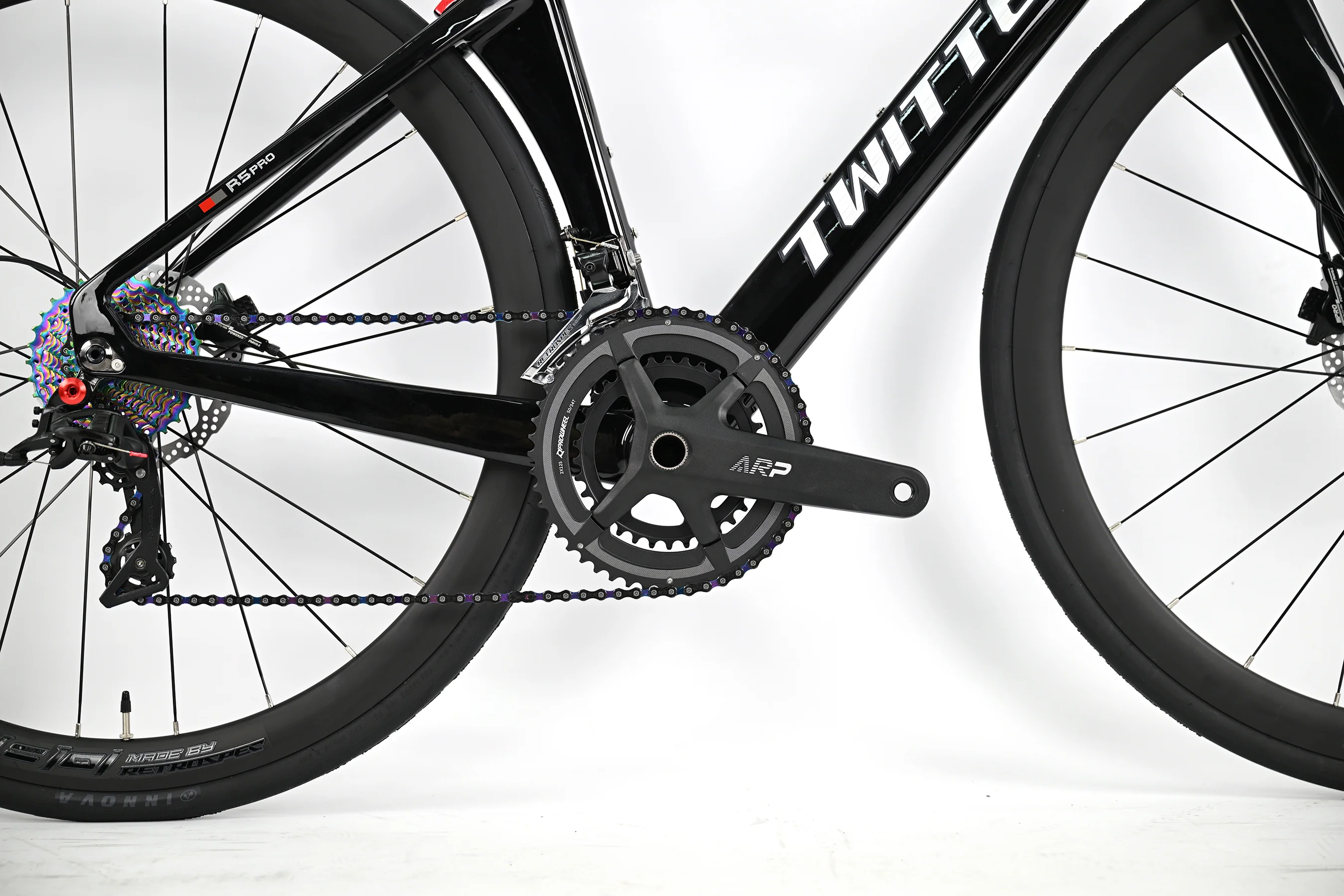

  • Crankset: Prowheel ARP aluminum alloy hollow 34-50T
  • Cassette: SUNSHINE 12-speed, 11–32T
  • Chain: SUMC 12-speed
  • Brakes: SENSAH HRD-G100 hydraulic disc (160 mm front / rear)

Variant 2 – WheelTop TX (2×12-Speed Wireless Hydraulic, Alloy Wheel)

  • System: WheelTop TX 24S (2×12-speed, wireless & hydraulic)
  • Shifters: WheelTop EDS TX (2×12-speed, wireless & hydraulic)
  • Front Derailleur: WheelTop EDS TX (2-speed, wireless)
  • Rear Derailleur: WheelTop EDS TX (12-speed, wireless)
  • Crankset: Prowheel ARP aluminum alloy hollow 34-50T
  • Cassette: SUNSHINE 12-speed, 11–32T
  • Chain: SUMC 12-speed
  • Brakes: WheelTop hydraulic disc (160 mm front / rear)

Wheelset & Tires

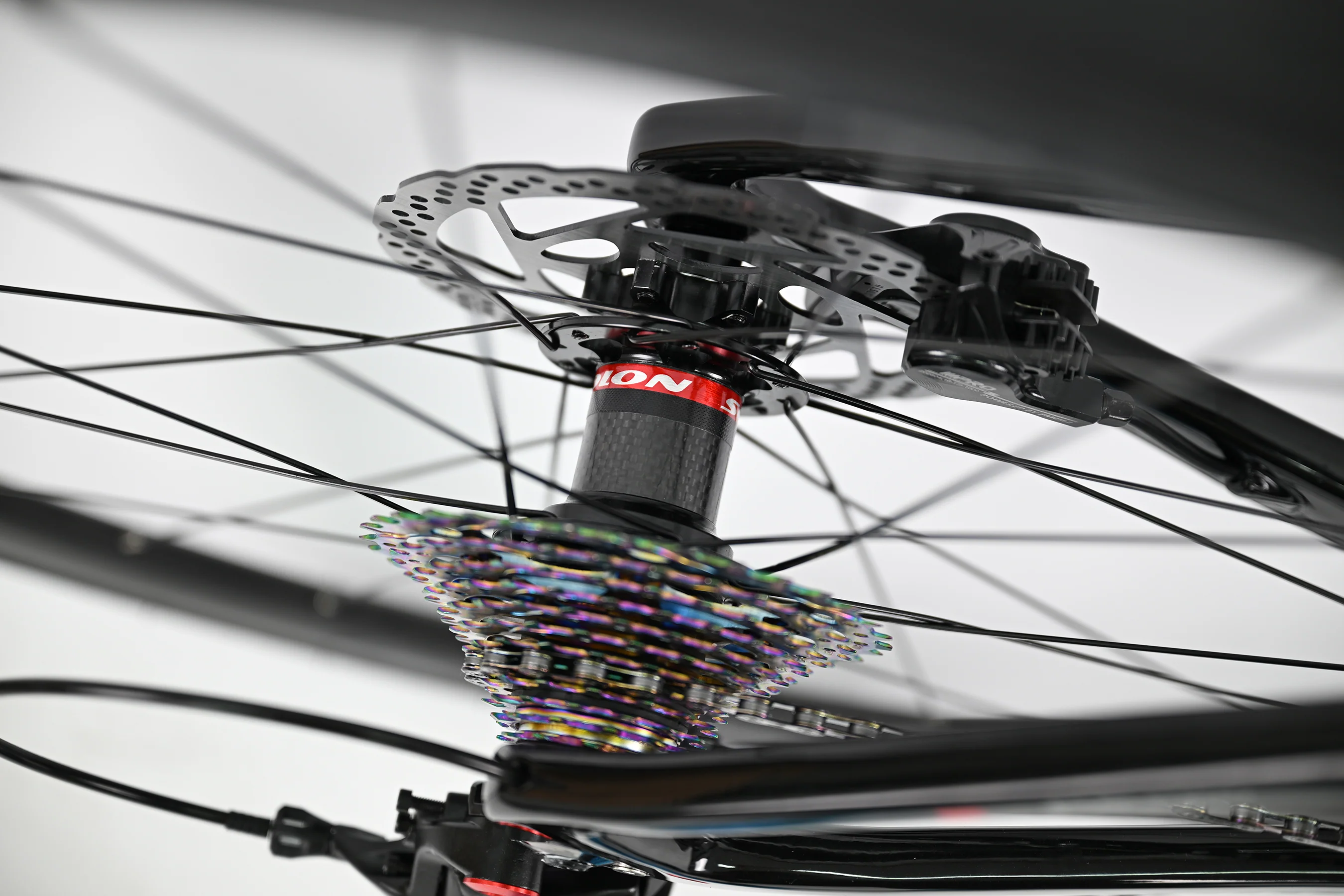

  • Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, slotted, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
  • Rims: RS aluminum alloy AL7005, double wall, W21×H38 mm, 700C
  • Spokes: SHUNJIU circular 14G
  • Tires: INNOVA 700×28C, black

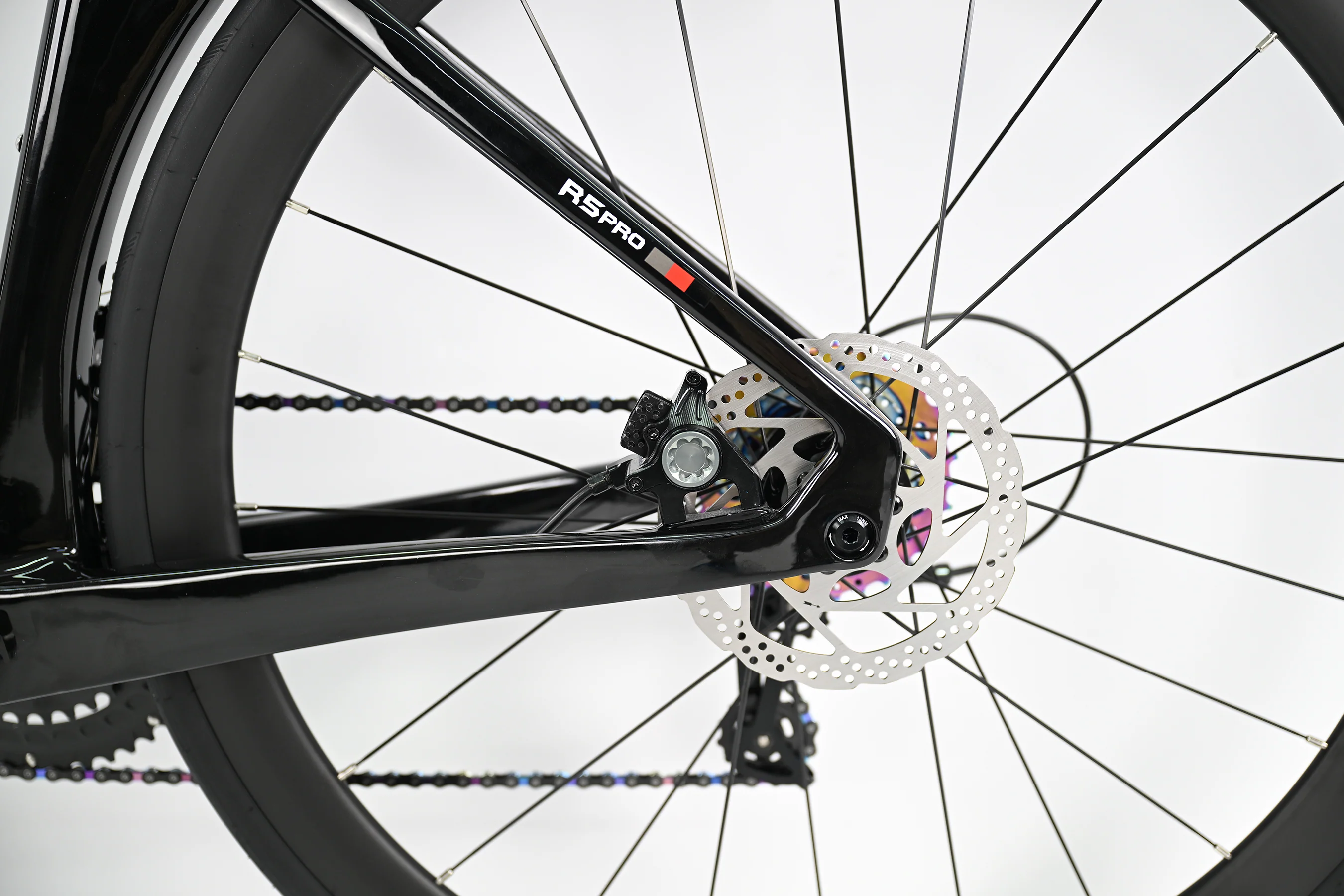

Braking System

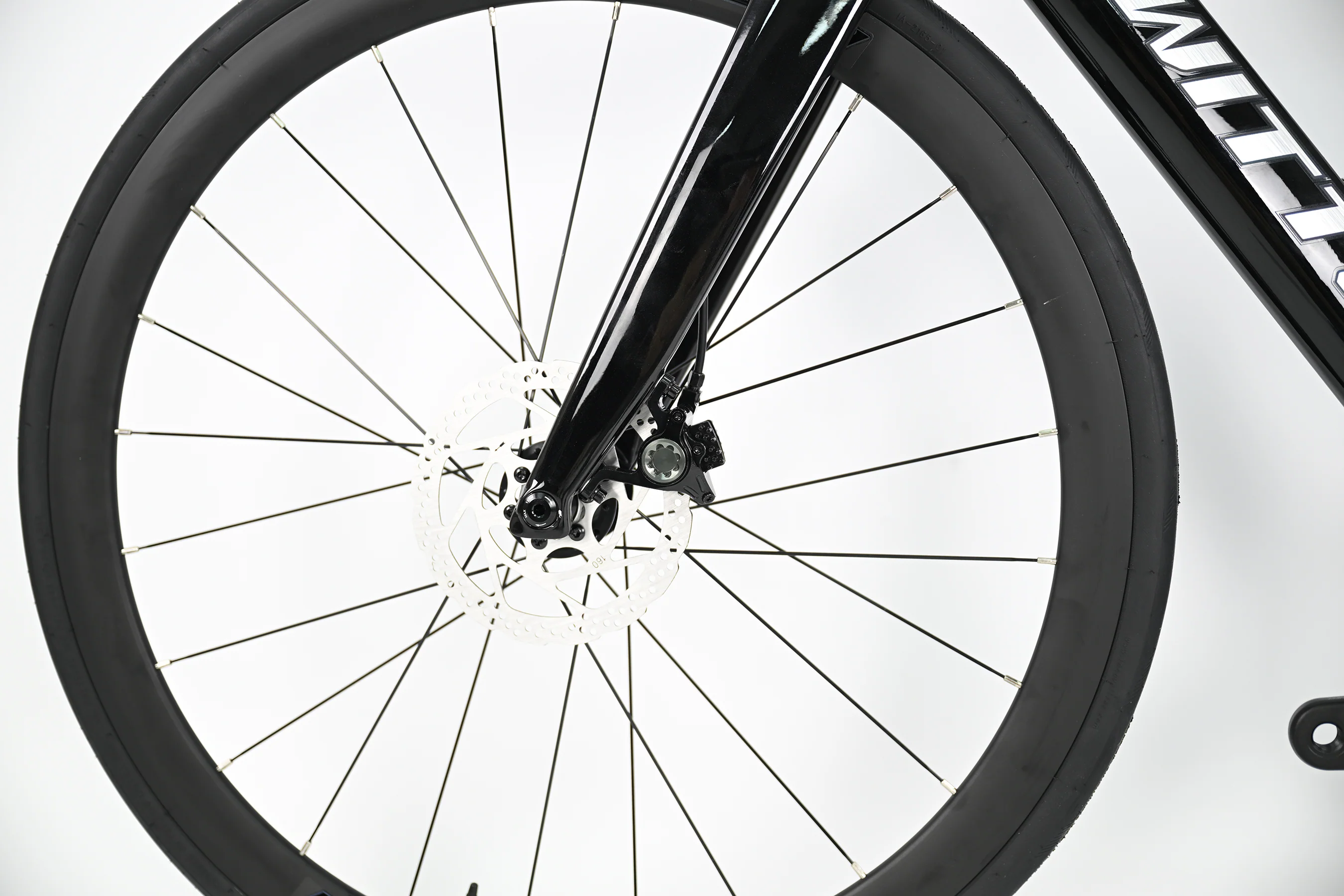

  • RS Variant: SENSAH HRD-G100 hydraulic disc, 160 mm front / 160 mm rear
  • WheelTop Variant: WheelTop hydraulic disc, 160 mm front / 160 mm rear

Additional Components

  • Belt: PU material, comfortable & skid-resistant
  • Saddle: Lightweight and comfortable racing design
  • Pedals: Lightweight & skid-resistant
  • Cables: JAGWIRE performance cables

Included Accessories

  • Reflectors: Handlebar, seat post, front wheel, rear wheel
  • Extras: Bottle cage + tools
  • Documentation: Manual + warranty card
Select Color
Select Configurations
From $293.37

Original: $838.20
