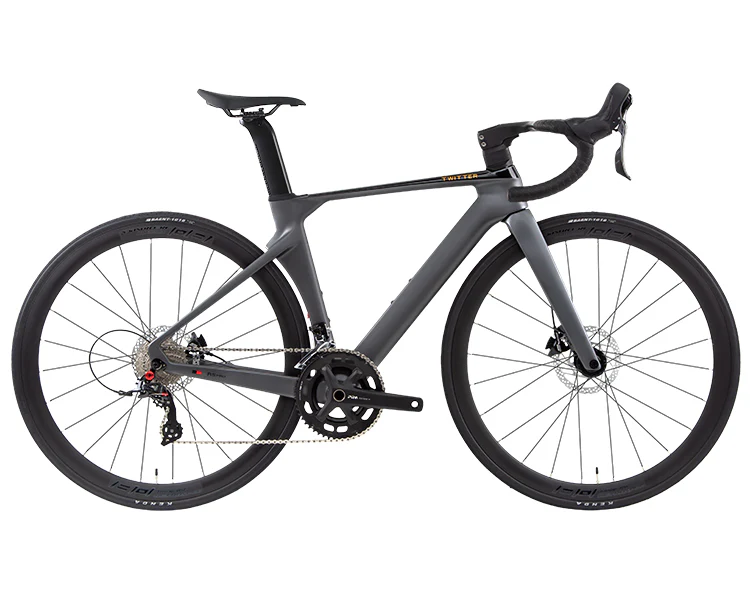

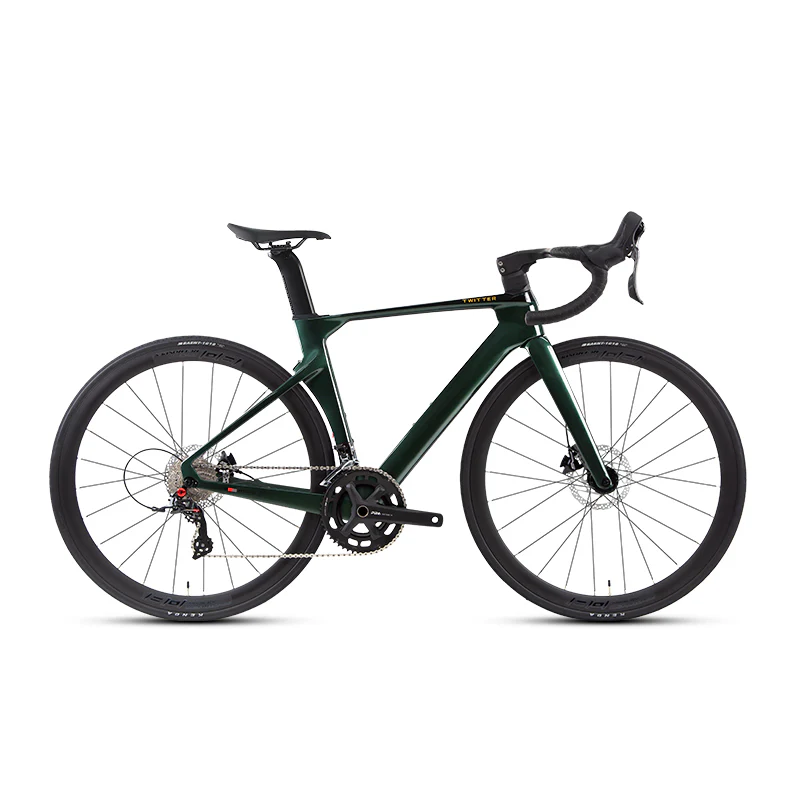

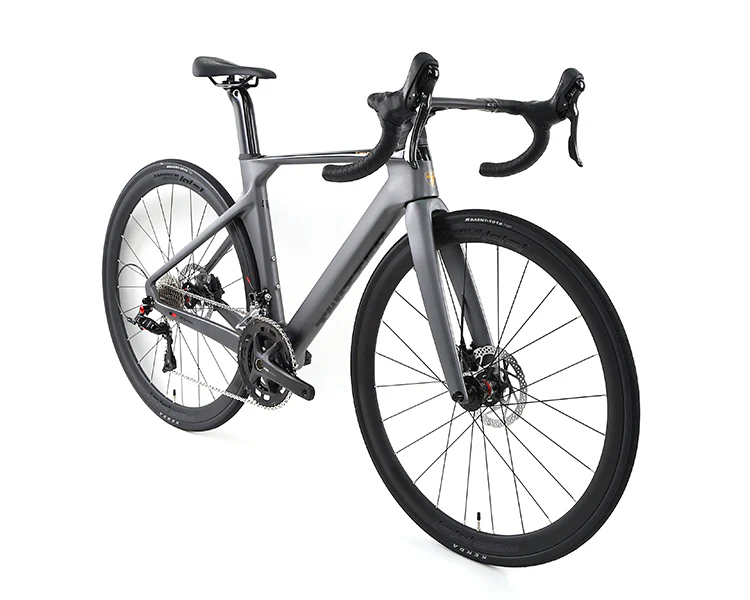

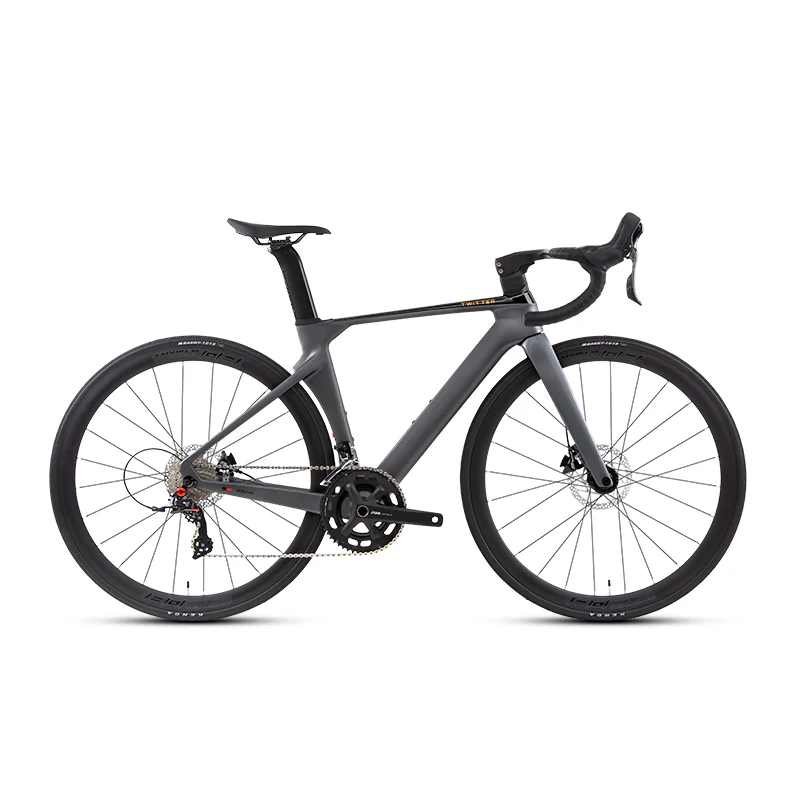

R5 Pro - 2rd Carbon Road Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm

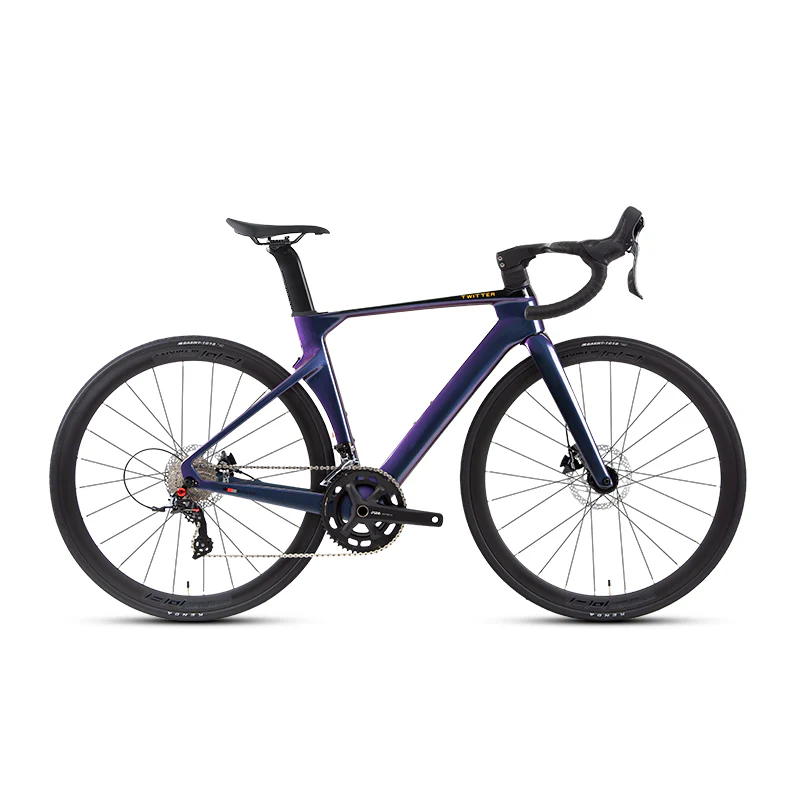

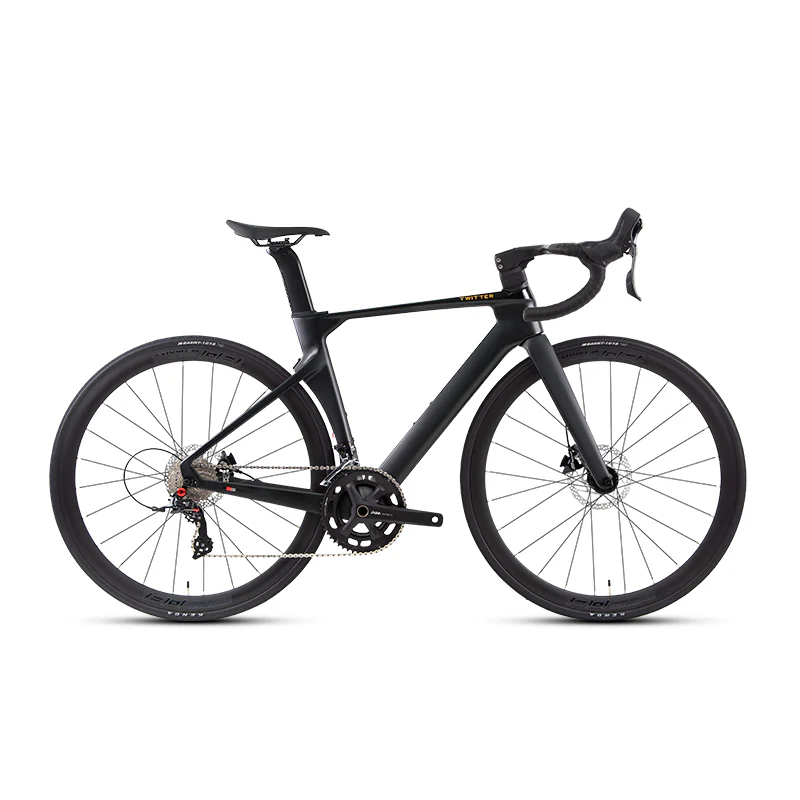

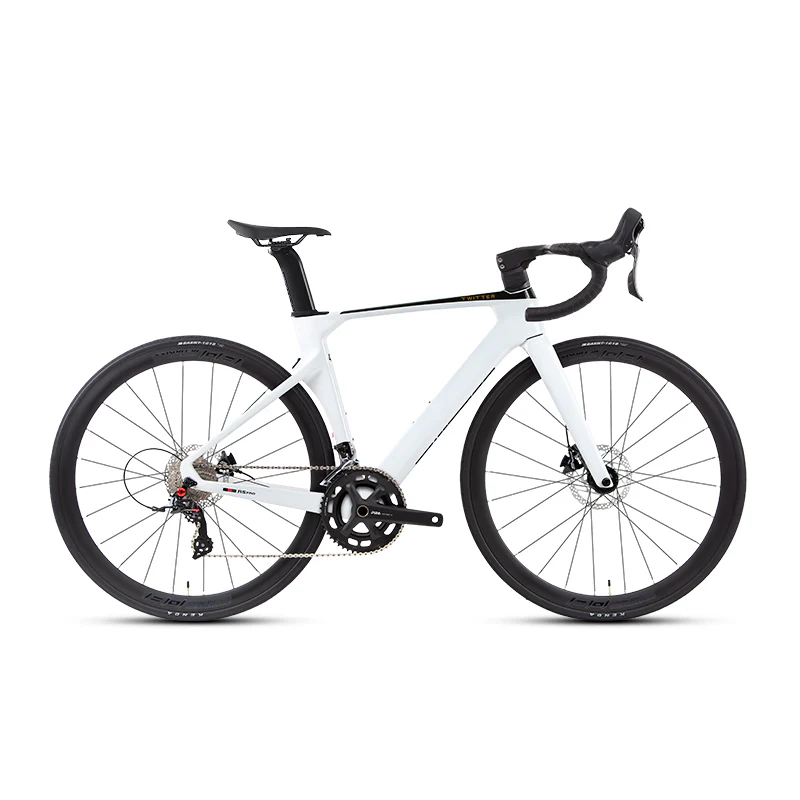

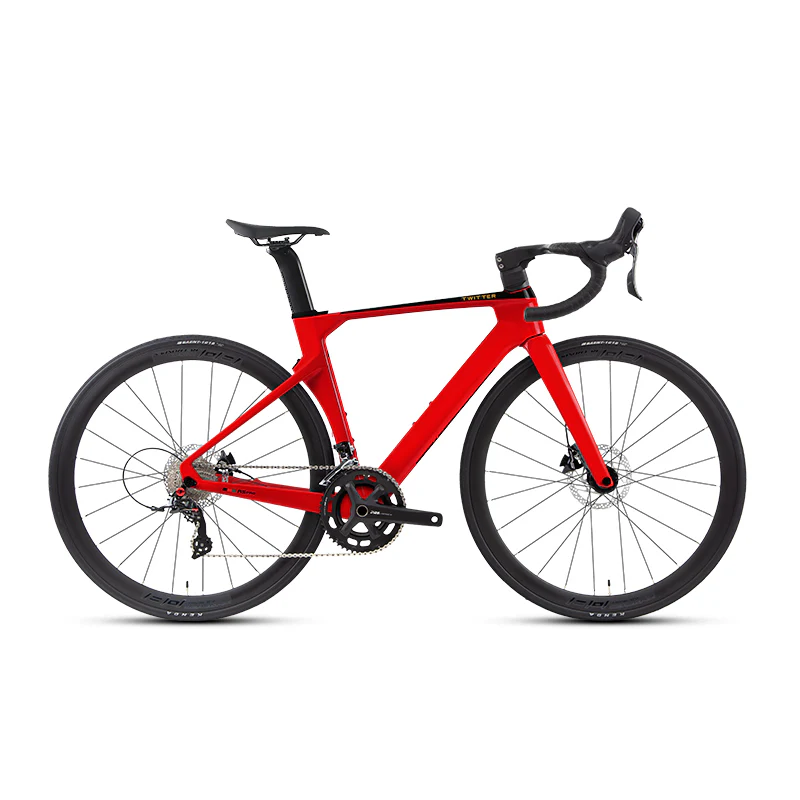

• Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic
• Weight: 9.3 kg (Alloy Version) / 9.1 kg (Carbon Wave Version)

---

Frame & Structure

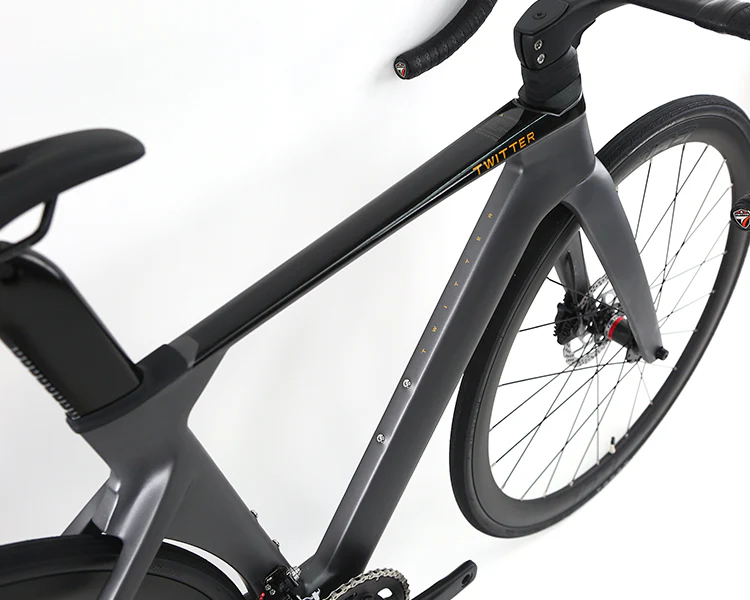

• Frame: R5pro (Disc & Thru-Axle 12×142), high modulus carbon fiber, Aero-Racing geometry with internal cable routing
• Fork: R5pro (Disc & Thru-Axle 12×100), high modulus carbon fiber, 700C
• Seat Post: High modulus carbon fiber, Aero-Racing profile

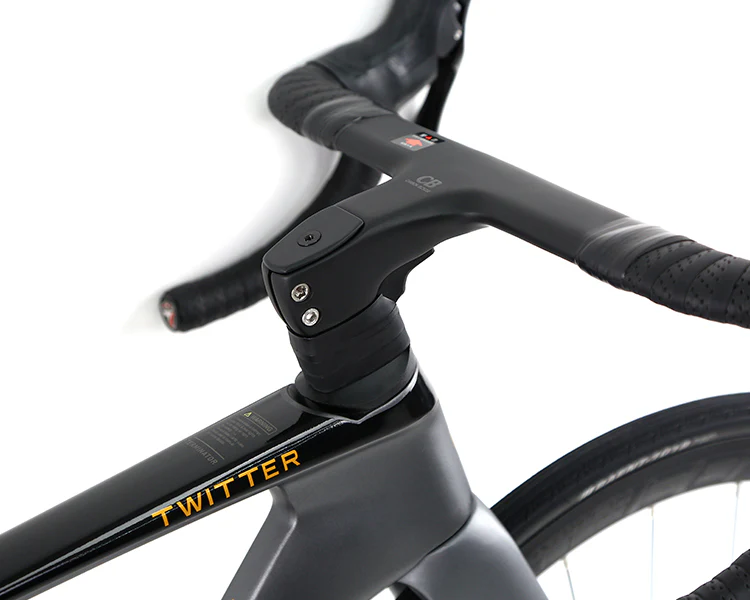

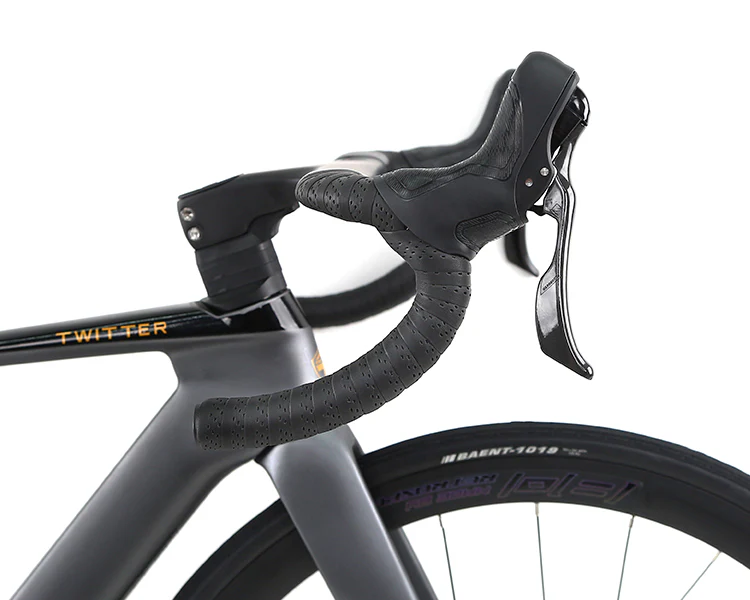

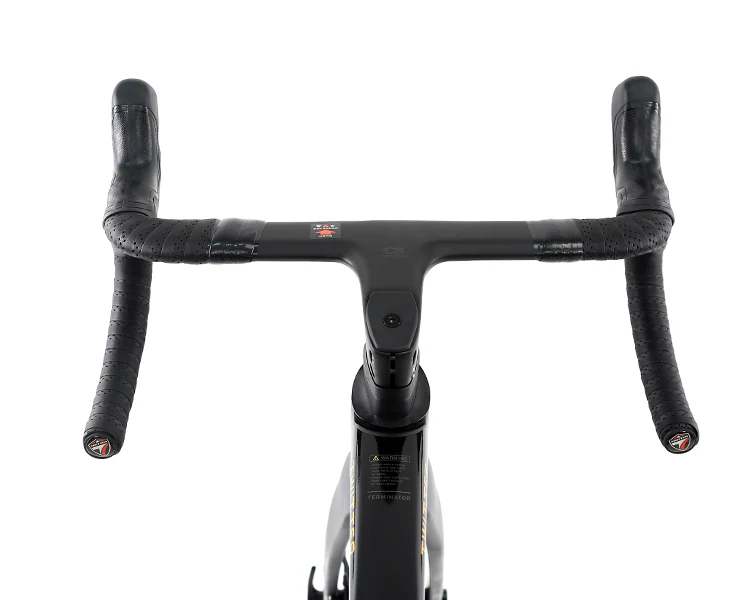

• Handlebar: Integrated carbon handlebar & stem (420×90 mm), full internal cable routing
• Clamps: Hidden screw fit to frame

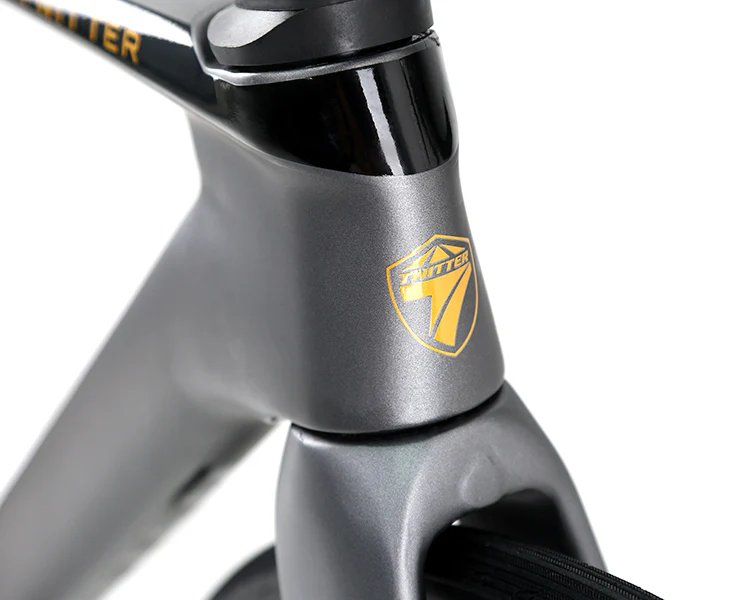

• Headset: CNC aluminum alloy with sealed bearings (52×52 mm)
• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
• Washer: Special design for internal cable routing

---

Drivetrain Options

Variant 1 – RS (SENSAH) 2×12-Speed Hydraulic, Alloy Wheel

• System: RS-24S (2×12-speed, hydraulic)

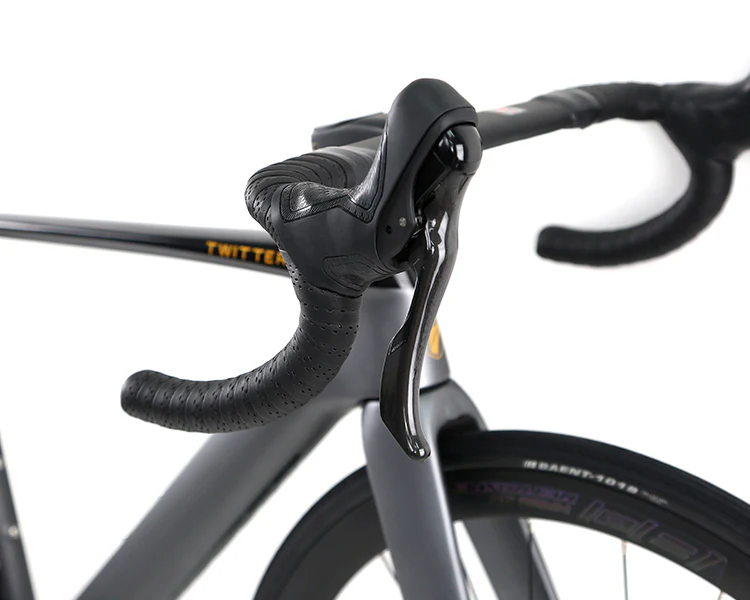

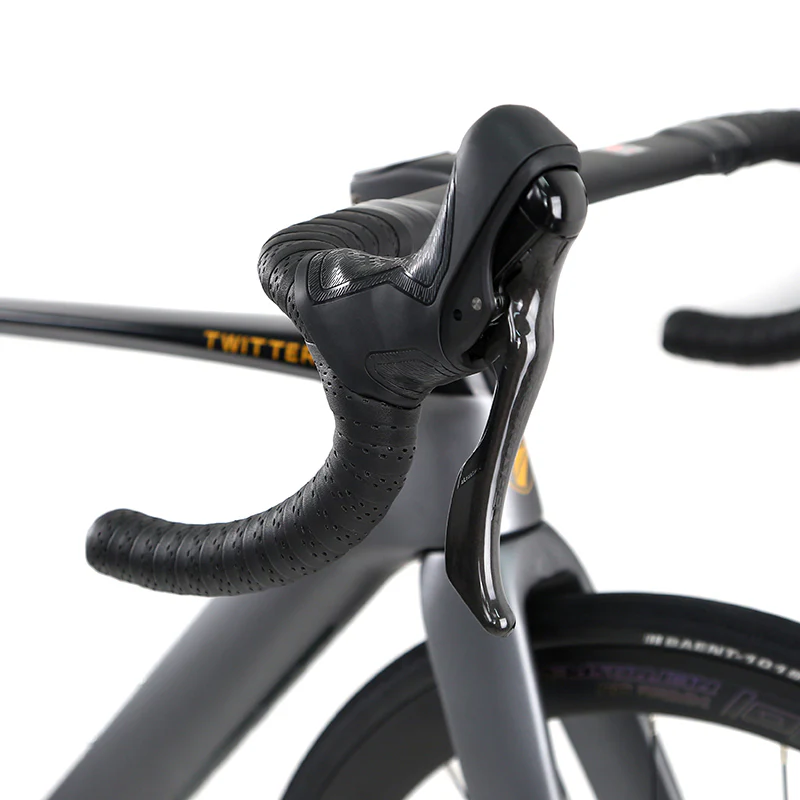

• Shifters: SENSAH HRD6900-R (2×12-speed)
• Front Derailleur: SENSAH Z2 (2-speed)

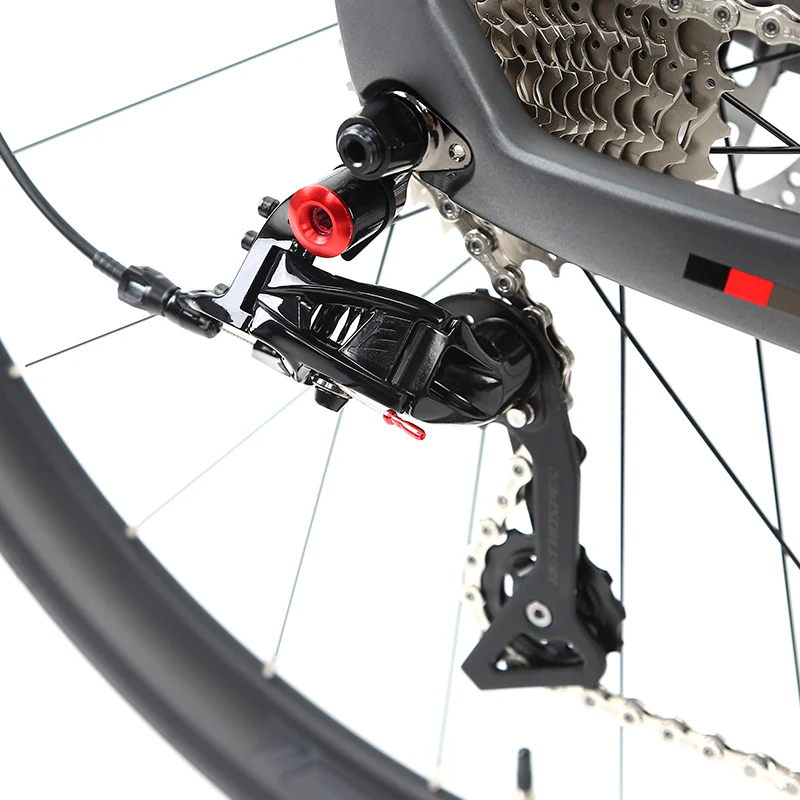

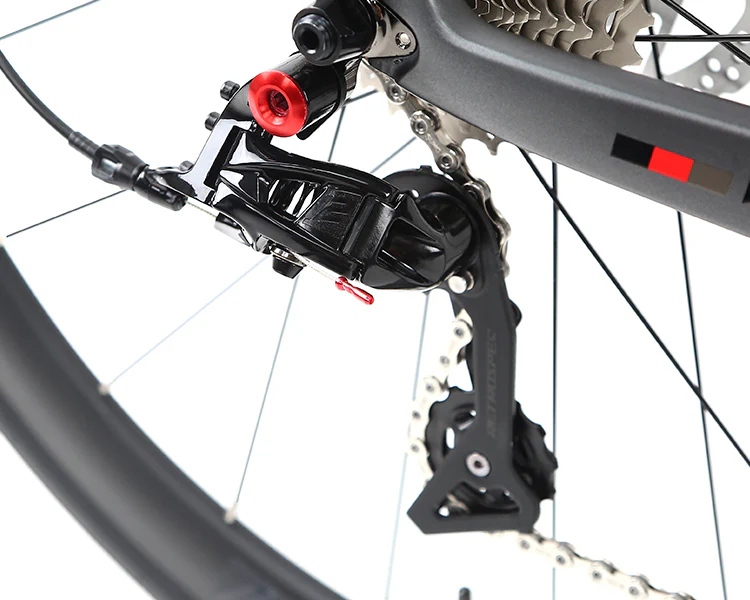

• Rear Derailleur: SENSAH RD8500-GS (12-speed)
• Crankset: SENICX PRF aluminum alloy hollow 34-50T

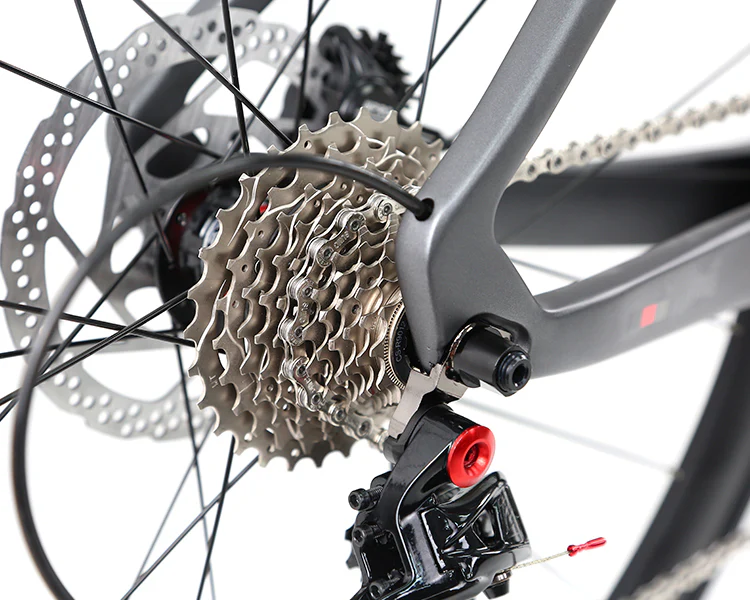

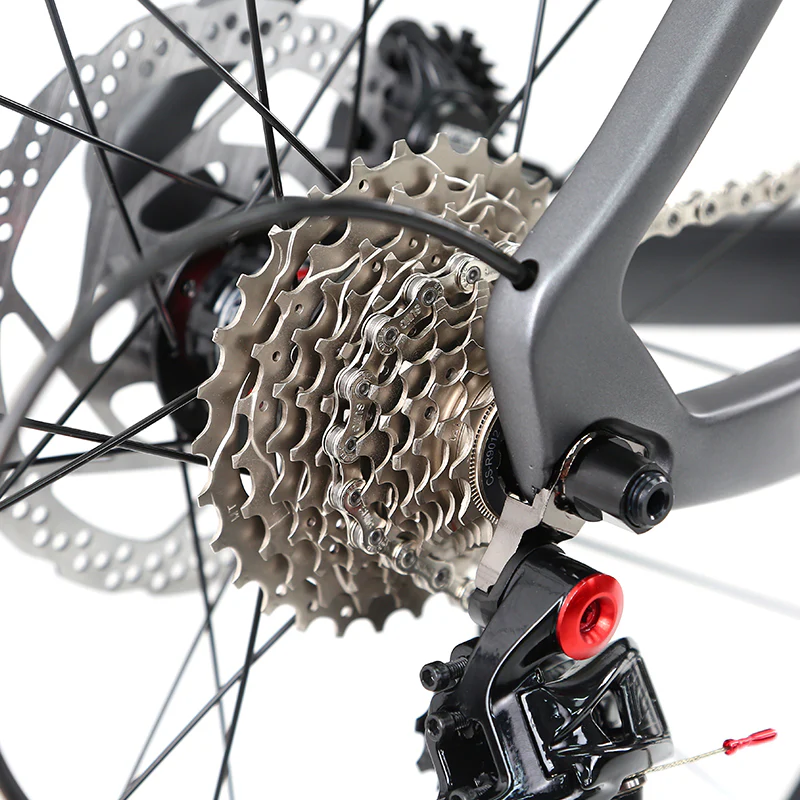

• Cassette: SUNSHINE 12-speed, 11–32T

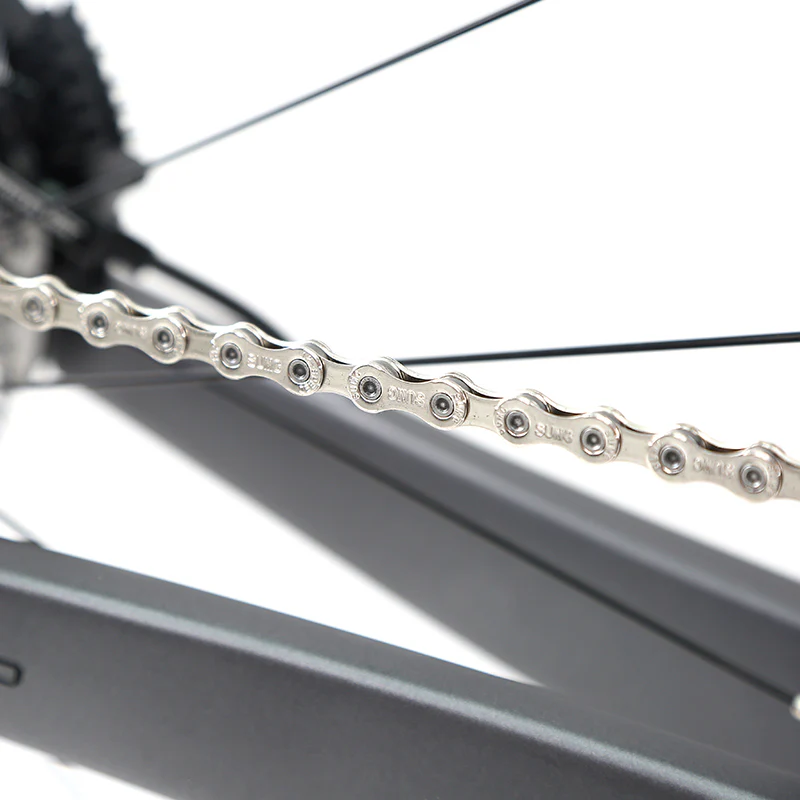

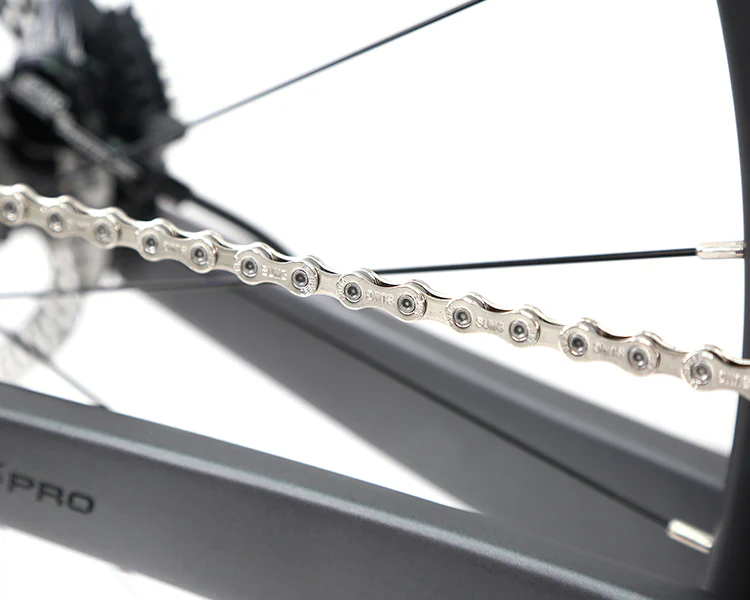

• Chain: SUMC 12-speed

---

Variant 2 – RS (SENSAH) 2×12-Speed Hydraulic, Carbon Wave Wheel

• System: RS-24S (2×12-speed, hydraulic)
• Shifters: SENSAH HRD6900-R (2×12-speed)
• Front Derailleur: SENSAH Z2 (2-speed)
• Rear Derailleur: SENSAH RD8500-GS (12-speed)
• Crankset: SENICX PRF aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 12-speed, 11–32T
• Chain: SUMC 12-speed

---

Wheelset & Tires

Alloy Wheel Version

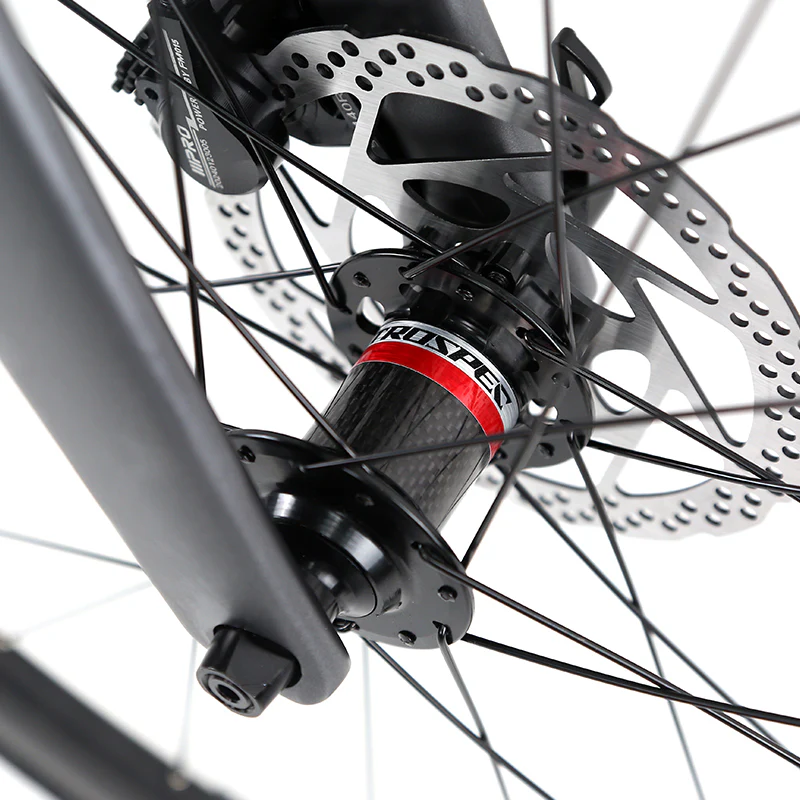

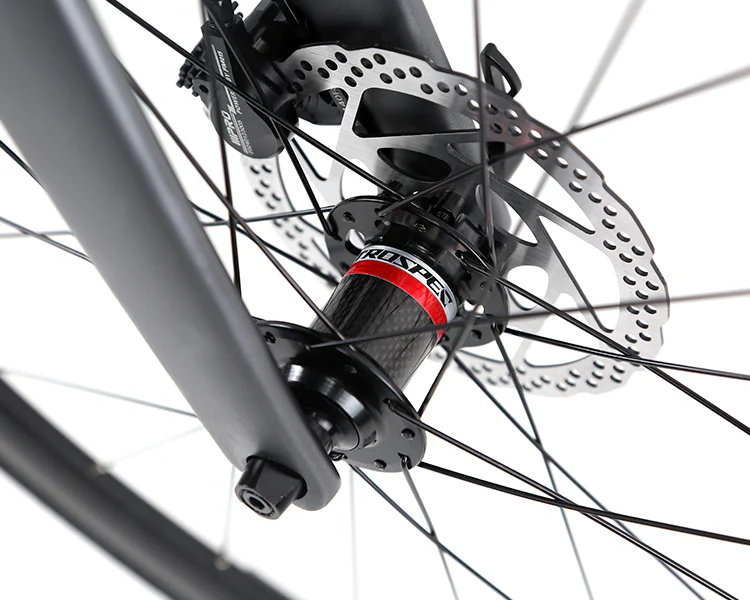

• Hubs: RS aluminum alloy & carbon fiber body, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

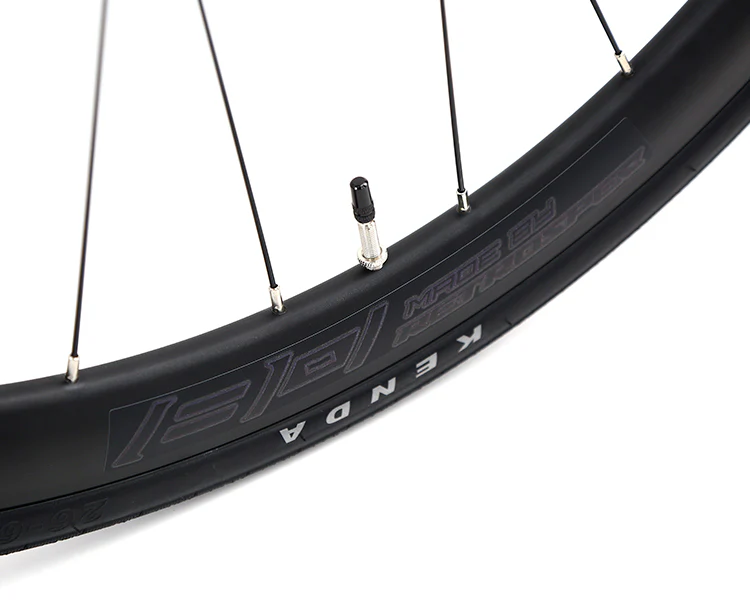

• Rims: RS aluminum alloy AL7005, double wall, W21×H38 mm
• Spokes: SHUNJIU circular 14G
• Tires: RS 700×28C, foldable with reflective edges

---

Carbon Wave Wheel Version

• Hubs: RS aluminum alloy & carbon fiber body, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
• Rims: RS high modulus carbon fiber wave rim, W28×H50 mm
• Spokes: SHUNJIU flat 14G
• Tires: RS 700×28C, foldable with reflective edges

---

Braking System

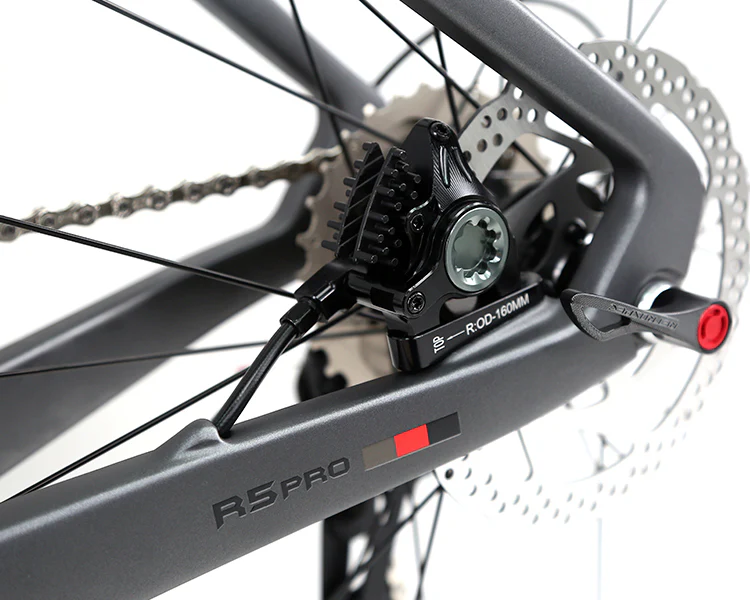

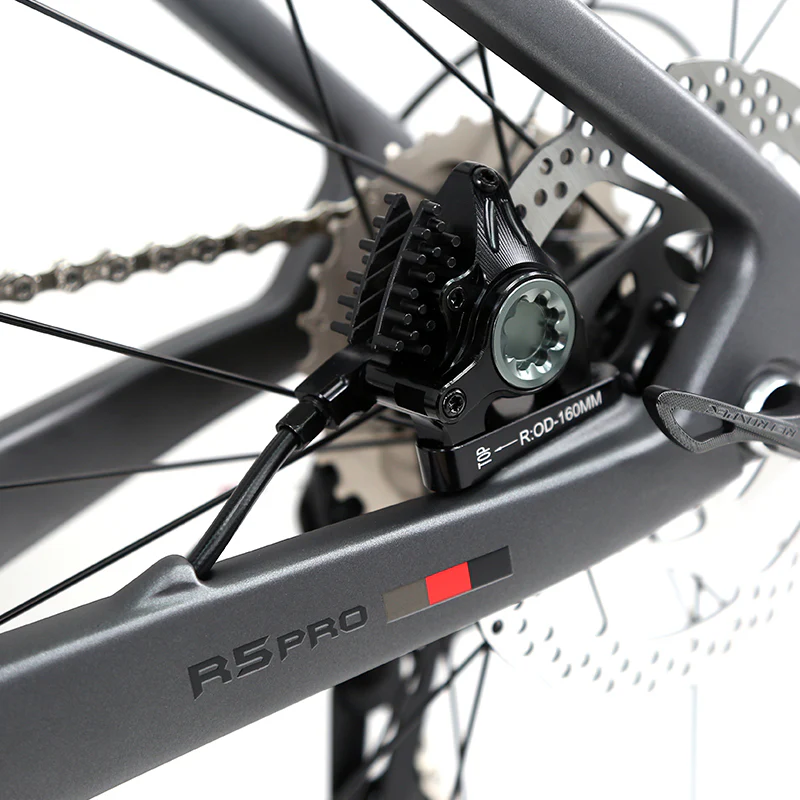

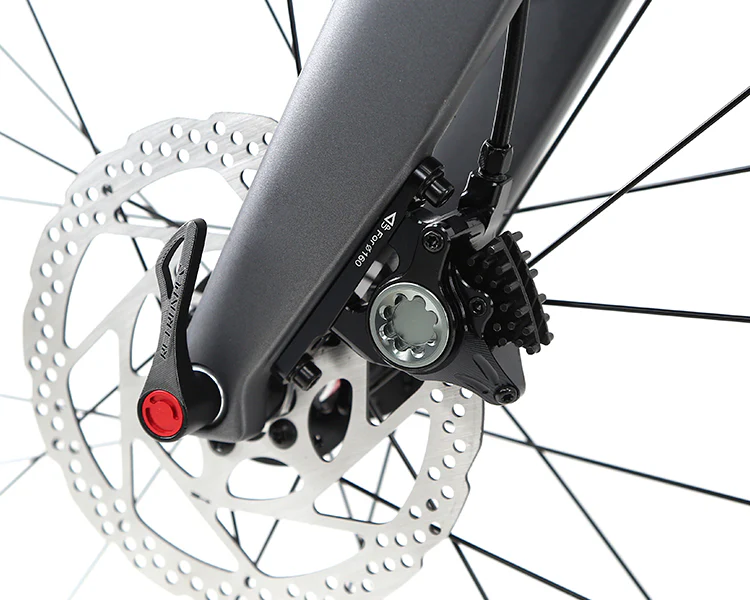

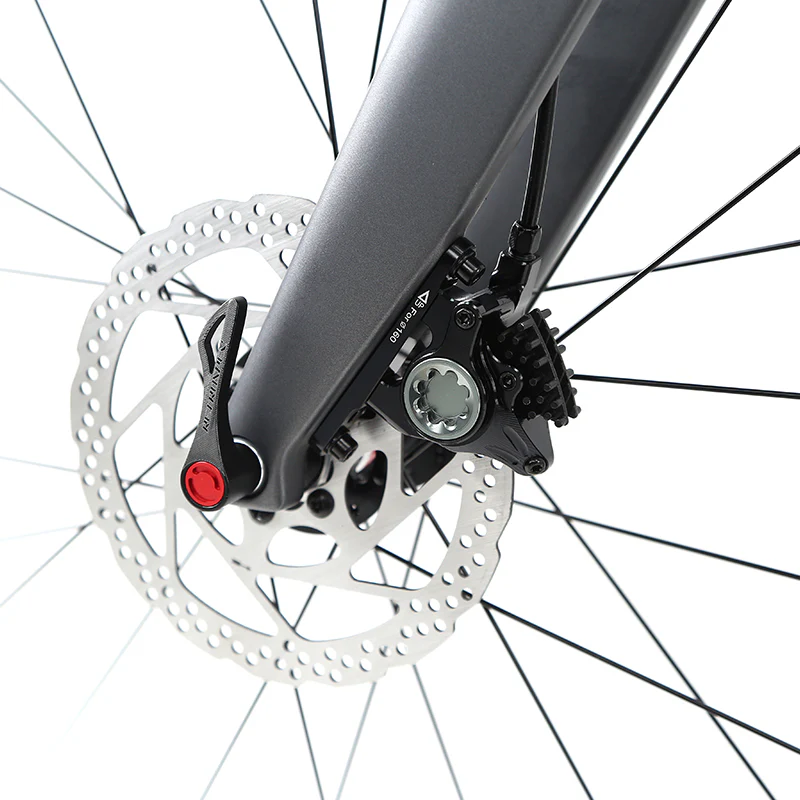

• Brakes: SENSAH HRD-G100 hydraulic disc, 160 mm front / 160 mm rear

---

Additional Components

• Belt: PU material, comfortable & skid-resistant

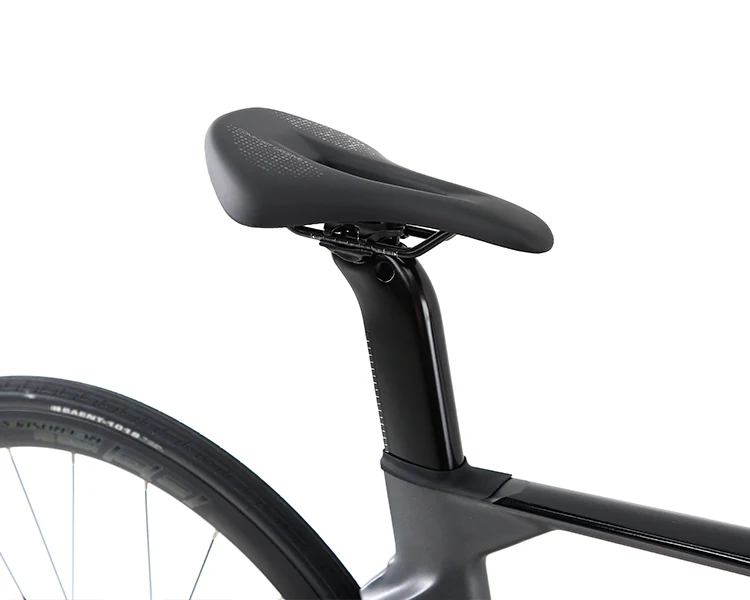

• Saddle: Lightweight and comfortable racing design
• Pedals: Lightweight & skid-resistant
• Cables: JAGWIRE performance cables

---

Included Accessories

• Reflectors: Handlebar, seat post, front wheel, rear wheel
• Extras: Bottle cage + tools
• Documentation: Manual + warranty card
