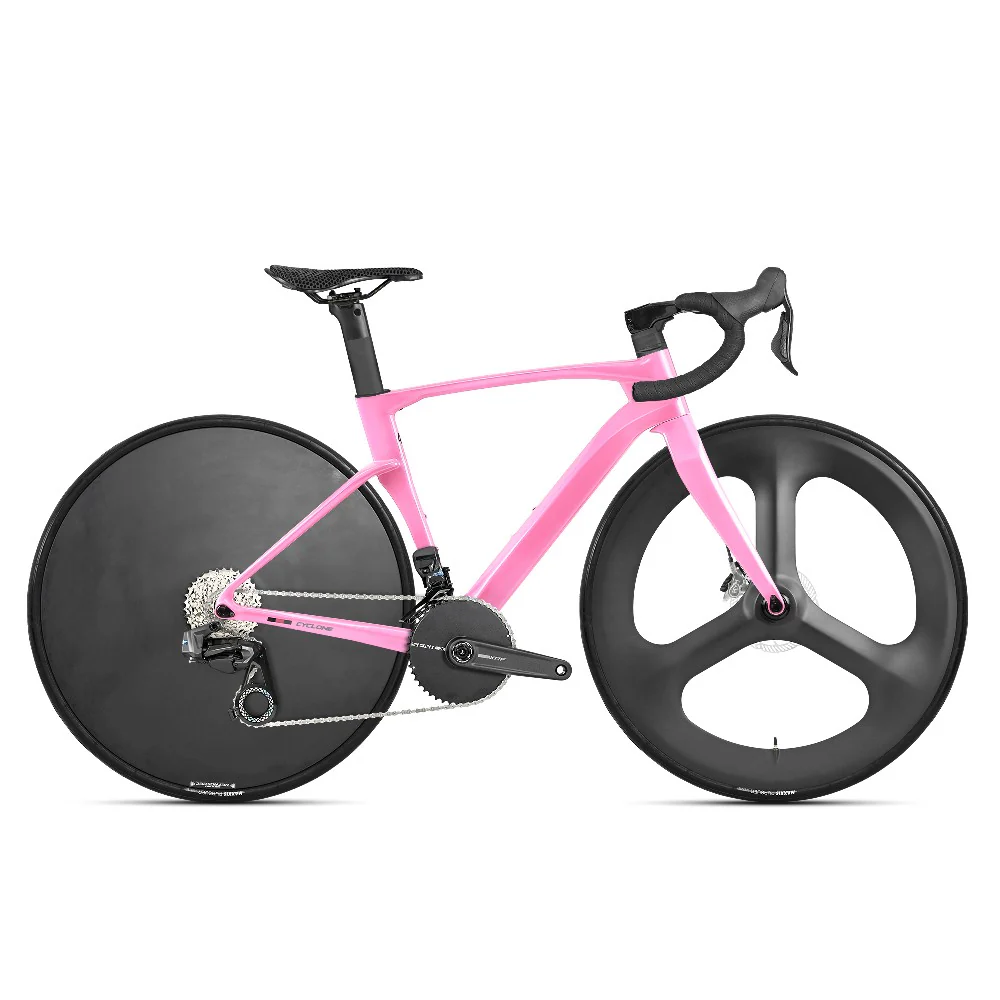

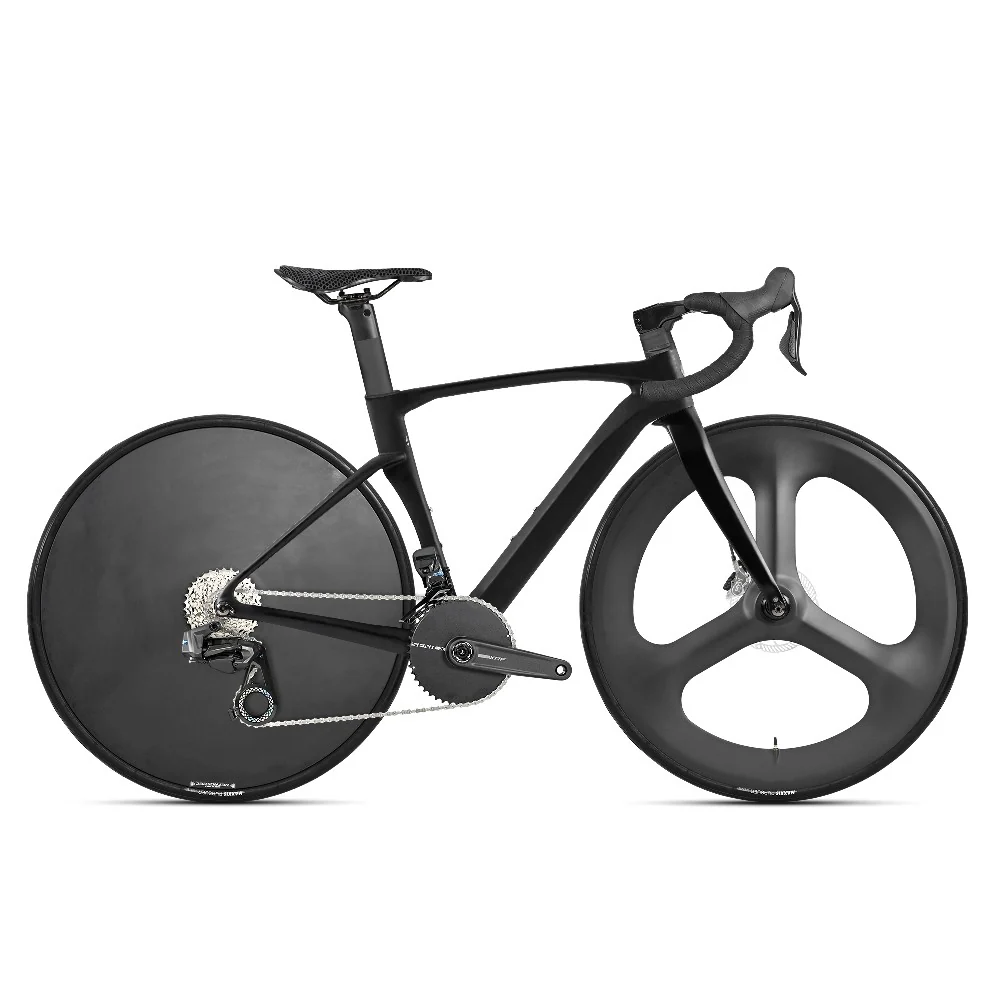

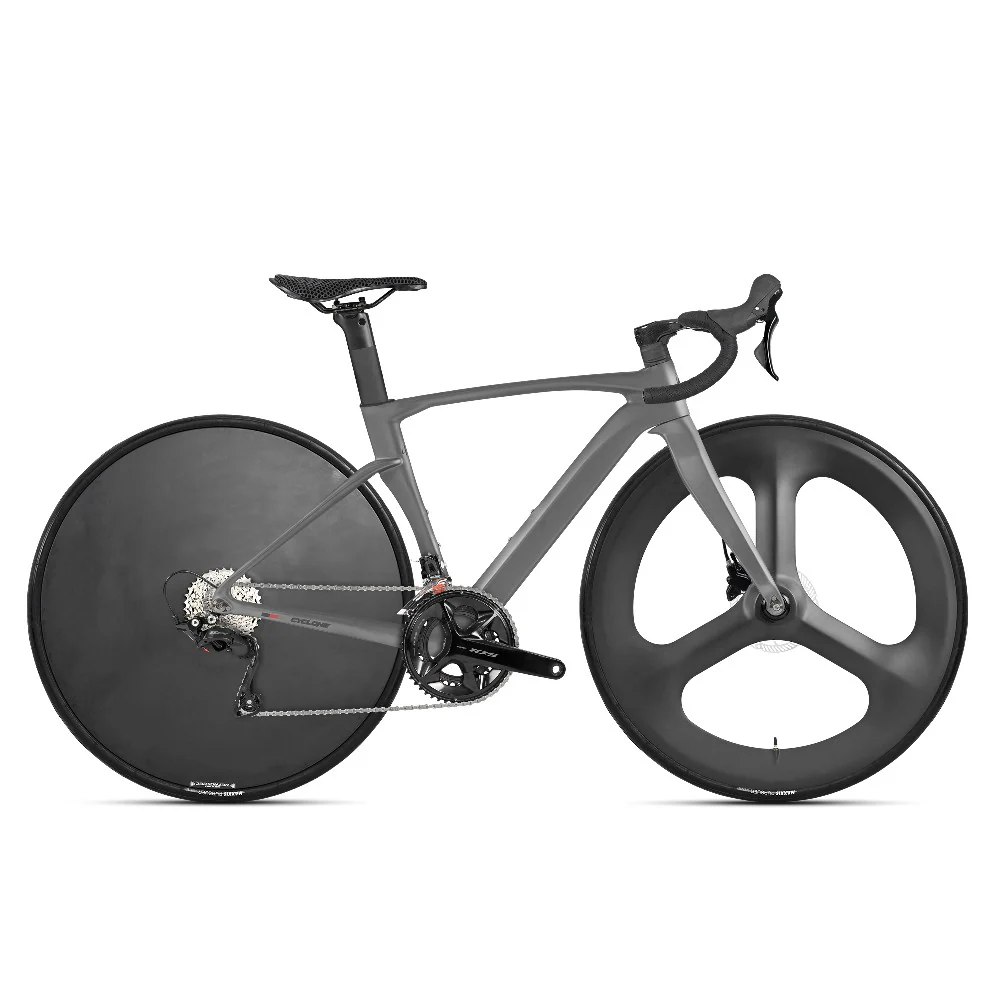

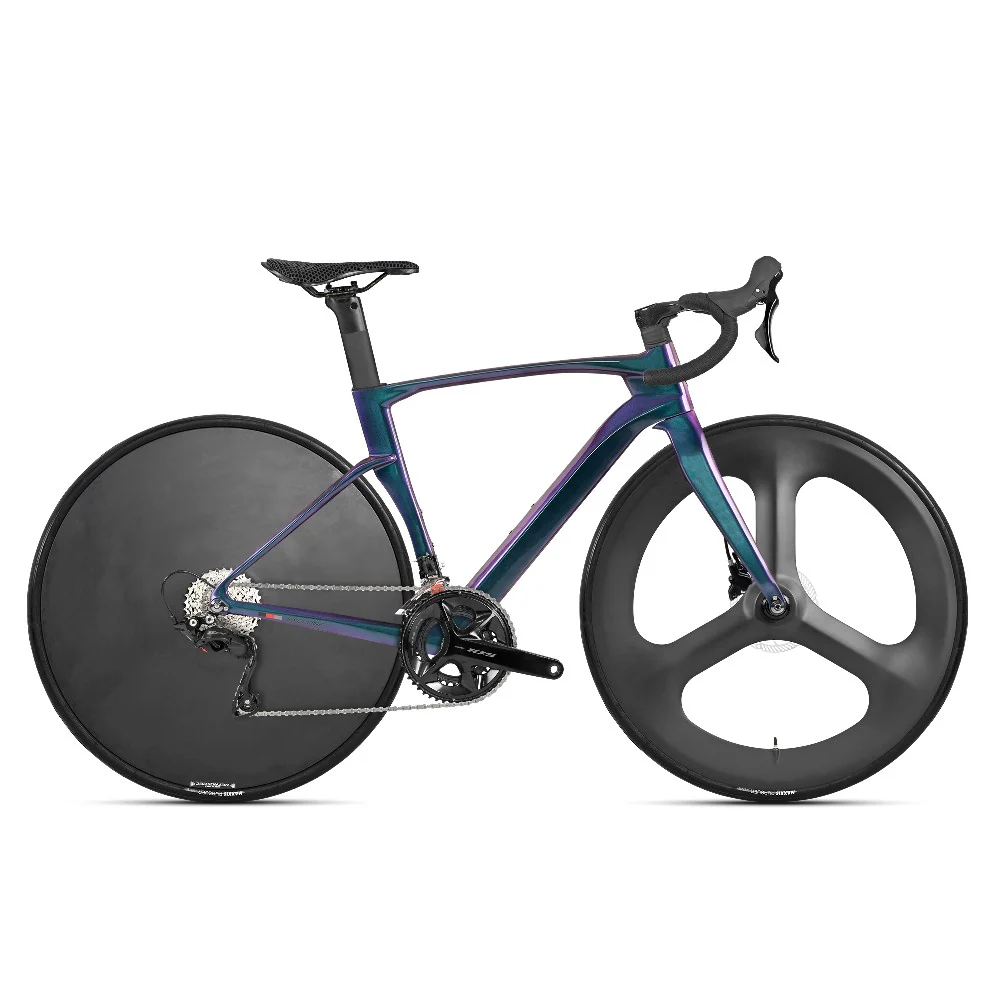

CYCLONE Tri-Spoke+Disc Wheel - TWITTER Road Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 cm
• Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic
• Weight: 8.9 kg (both configurations)

---

Frame & Structure

• Frame: CYCLONE-3rd generation, high modulus carbon fiber, aero geometry, internal cable routing, thru-axle 12×142 mm
• Fork: CYCLONE carbon fiber fork, 700C, thru-axle 12×100 mm
• Seat Post: High modulus carbon fiber aero racing design
• Handlebar: Integrated 3K carbon fiber aero cockpit (380×80 / 400×90 / 420×100 mm), full internal cable routing
• Clamps: Hidden screw integration system
• Headset: CNC aluminum alloy sealed bearings (52×52 mm)
• Bottom Bracket: T47 threaded hollow bearing system (variant dependent)

---

Drivetrain Options

Variant 1 – Shimano 105 R7120 2×12-Speed

• System: Shimano 105 R7120 mechanical hydraulic 2×12
• Shifters: Shimano 105 R7120
• Front Derailleur: Shimano 105 R7100 2-speed
• Rear Derailleur: Shimano 105 R7100 12-speed
• Crankset: Shimano 105 R7100 hollow 34–50T
• Cassette: Shimano 105 R7100 12-speed, 11–34T
• Chain: Shimano HG6100 12-speed
• Bottom Bracket: T47×24 mm threaded hollow
• Brakes: Shimano 105 R7070 hydraulic disc, 160/160 mm centerlock

---

Variant 2 – WheelTop EVO TX Wireless 2×12-Speed

• System: WheelTop EVO TX wireless electronic shifting 2×12
• Shifters: WheelTop EVO TX wireless carbon shifters
• Front Derailleur: WheelTop EVO TX wireless 2-speed
• Rear Derailleur: WheelTop EVO TX wireless 12-speed carbon cage
• Crankset: SENICX XRF aluminum alloy DUB, 30–46T
• Cassette: Shimano 105 R7100 12-speed, 11–34T
• Chain: Shimano HG6100 12-speed
• Bottom Bracket: T47×29 mm threaded hollow
• Brakes: CNC 4-piston hydraulic disc brake system + IIIPRO centerlock rotors 160/160 mm

---

Wheelset & Tires

• Hubs: RS aluminum alloy + carbon fiber, 36T ratchet, 4 sealed bearings, centerlock, F12×100 / R12×142
• Rims: Carbon fiber aero wheelset, front tri-spoke + rear disc wheel
• Spokes: Integrated carbon structure
• Tires: MAXXIS Pursuer 700×28C, foldable

---

Braking System

• Shimano Variant: Shimano 105 R7070 hydraulic disc, 160/160 mm
• WheelTop Variant: CNC 4-piston hydraulic disc system
• Rotors: IIIPRO centerlock 160/160 mm

---

Additional Components

• Saddle: 3D printed carbon fiber racing saddle
• Pedals: Lightweight aluminum alloy sealed bearing
• Cables: JAGWIRE internal routing
• Belt: PU anti-slip ergonomic coating

---

Included Accessories

• Safety reflectors: front, rear, handlebar, seat post, wheels
• Bottle cage: aluminum alloy
• Tools kit included
• Manual + warranty card
